DSR073 U.S.Type G209 Screw Pin Bow Shackle G209美式弓型卸扣
|
ITEM NO.in |
WLL/T |
Weight/KG |

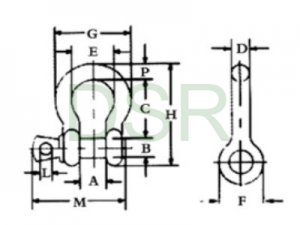

Dimensions（mm） |
Tolerance +/- |
|||||||||||
|
A |
B |
C |
D |
E |
F |
G |
H |
L |
M |
P |
C |
A |
|||
|
3/16 |
0.3 |
0.03 |
9.65 |
6.35 |
22.4 |
4.85 |
15.2 |
14.2 |
24.9 |
37.3 |
4.06 |
28.4 |
4.85 |
1.50 |
1.50 |
|
1/4 |
0.5 |
0.05 |
11.9 |
7.85 |
28.7 |
6.35 |
19.8 |
15.5 |
32.5 |
46.7 |
4.85 |
35.1 |
6.35 |
1.50 |
1.50 |
|
5/16 |
0.75 |
0.09 |
13.5 |
9.65 |
31.0 |
7.85 |
21.3 |
19.1 |
37.3 |
53.0 |
5.60 |
42.2 |
7.85 |
3.30 |
1.50 |
|
3/8 |
1 |
0.14 |
16.8 |
11.2 |
36.6 |
9.65 |
26.2 |
23.1 |
45.2 |
63.0 |
6.35 |
51.5 |
9.65 |
3.30 |
1.50 |
|
7/16 |
1.5 |
0.17 |
19.1 |
12.7 |
42.9 |
11.2 |
29.5 |
26.9 |
51.5 |
74.0 |
7.85 |
60.5 |
11.2 |
3.30 |
1.50 |
|
1/2 |
2 |
0.33 |
20.6 |
16.0 |
47.8 |
12.7 |
33.3 |
30.2 |
58.5 |
83.5 |
9.65 |
68.5 |
12.7 |
3.30 |
1.50 |
|
5/8 |
3.25 |
0.62 |
26.9 |
19.1 |
60.5 |
16.0 |
42.9 |
38.1 |
74.5 |
106 |
11.2 |
85.0 |
17.5 |
6.35 |
1.50 |
|
3/4 |
4.75 |
1.07 |
31.8 |
22.4 |
71.5 |
19.1 |
51.0 |
46.0 |
89.0 |
126 |
12.7 |
101 |
20.6 |
6.35 |
1.50 |
|
7/8 |
6.5 |
1.64 |
36.6 |
25.4 |
84.0 |
22.4 |
58.0 |
53.0 |
102 |
148 |
12.7 |
114 |
24.6 |
6.35 |
1.50 |
|
1 |
8.5 |
2.28 |
42.9 |
28.7 |
95.5 |
25.4 |
68.5 |
60.5 |
119 |
167 |
14.2 |
129 |
26.9 |
6.35 |
1.50 |
|
1-1/8 |
9.5 |
3.36 |
46.0 |
31.8 |
108 |
29.5 |
74.0 |
68.5 |
131 |
190 |
16.0 |
142 |
31.8 |
6.35 |
1.50 |
|
1-1/4 |
12 |
4.31 |
51.5 |
35.1 |
119 |
32.8 |
82.5 |
76.0 |
146 |
210 |
17.5 |
156 |
35.1 |
6.35 |
1.50 |
|
1-3/8 |
13.5 |
6.14 |
57.0 |
38.1 |
133 |
36.1 |
92.0 |
84.0 |
162 |
233 |
19.1 |
174 |
38.1 |
6.35 |
3.30 |
|
1-1/2 |
17 |
7.80 |
60.5 |
41.4 |
146 |
39.1 |
98.5 |
92.0 |
175 |
254 |
20.6 |
187 |
41.1 |
6.35 |
3.30 |
|
1-3/4 |
25 |
12.6 |
73.0 |
51.0 |
178 |
46.7 |
127 |
106 |
225 |
313 |
25.4 |
231 |
57.0 |
6.35 |
3.30 |
|
2 |
35 |
20.4 |
82.5 |
57.0 |
197 |
53.0 |
146 |
122 |
253 |
348 |
31.0 |
263 |
61.0 |
6.35 |
3.30 |
|
2-1/2 |
55 |
38.9 |
105 |
70.0 |
267 |
69.0 |
184 |
145 |
327 |
453 |
35.1 |
330 |
79.5 |
6.35 |
6.35 |
Maximum Proof Load is 2times the Working Load Limit. 最大试验负荷为工作负荷极限的2倍
Minimum Ultimate Strength is 4times the Working Load Limit. 最低极限强度为工作负荷极限的4倍
