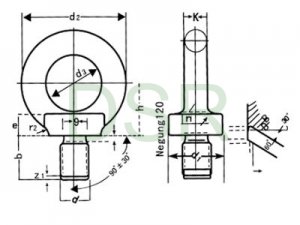

DSR094 DIN 580 EYE BOLT DIN580吊环螺栓
|
ITEM NO. |
WLL/T |
d1 mm |
d2 mm |
d3 mm |
b mm |
e mm |
h mm |
k mm |
Weight/100pcs KG |
|
M6 |
0.08 |
20 |
36 |
20 |
13 |
6 |
18 |
8 |
5 |
|
M8 |
0.14 |
20 |
36 |
20 |
13 |
6 |
18 |
8 |
6 |
|
M10 |
0.23 |
25 |
45 |
25 |
17 |
8 |
22.5 |
10 |
11 |
|
M12 |
0.34 |
30 |
54 |
30 |
20.5 |
10 |
26 |
12 |
18 |
|
M14 |
0.49 |
35 |
63 |
35 |
27 |
12 |
30.5 |
14 |
28 |
|
M16 |
0.7 |
35 |
63 |
35 |
27 |
12 |
30.5 |
14 |
28 |
|
M18 |
0.93 |
40 |
72 |
40 |
30 |
14 |
35 |
16 |
45 |
|
M20 |
1.2 |
40 |
72 |
40 |
30 |
14 |
35 |
16 |
45 |
|
M22 |
1.5 |
45 |
81 |
45 |
35 |
16 |
40 |
18 |
67 |
|
M24 |
1.8 |
50 |
90 |
50 |
36 |
18 |
45 |
20 |
87 |
|
M27 |
2.5 |
50 |
90 |
50 |
36 |
18 |
45 |
20 |
88 |
|
M30 |
3.6 |
65 |
108 |
60 |
45 |
22 |
55 |
24 |
166 |
|
M33 |
4.3 |
65 |
108 |
60 |
45 |
22 |
55 |
24 |
172 |
|
M36 |
5.1 |
75 |
126 |
70 |
54 |
26 |
65 |
28 |
265 |
|
M39 |
6.1 |
75 |
126 |
70 |
54 |
26 |
65 |
28 |
280 |
|
M42 |
7.0 |
85 |
144 |
80 |
63 |
30 |
75 |
32 |
403 |
|
M45 |
8 |
85 |
144 |
80 |
63 |
30 |
75 |
32 |
425 |
|
M48 |
8.6 |
100 |
166 |
90 |
68 |
35 |
85 |
38 |
638 |
|
M52 |
9.9 |
100 |
166 |
90 |
68 |
35 |
85 |
38 |
660 |
|
M56 |
11.5 |
110 |
184 |
100 |
78 |
38 |
95 |
42 |
880 |
|
M64 |
16.0 |
120 |
206 |
110 |
90 |
42 |
105 |
48 |
1240 |
