DSR115 NACM96 STANDARD LINK CHAIN NACM96美标链条

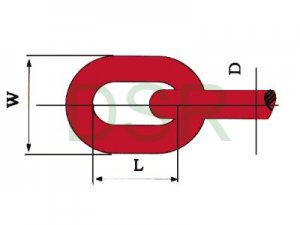

1.PROOF COIL CHAIN NACM96(G30)
|
ITEM NO. |
MATERIAL DIAMETER |
WORKING LOAD LIMIT (MAX) |
PROOF TEST (MIN) |
BREAKING FORCE (MIN) |
INSIDE LENGTH (MAX) |
INSIDE WIDTH (MIN) |
|||||||
|
MM |
IN |
MM |
IN |
KG |
LB |
KN |
LB |
KN |
LB |
MM |
IN |
MM |
IN |
|
4 |
1/8 |
4 |
0.156 |
180 |
400 |
3.6 |
800 |
7.2 |
1600 |
23.9 |
0.94 |
6.4 |
0.25 |
|
5.5 |
3/16 |
5.5 |
0.217 |
365 |
800 |
7.2 |
1500 |
14.4 |
3200 |
24.8 |
0.98 |
7.7 |
0.3 |
|
7 |
1/4 |
7 |
0.276 |
580 |
1300 |
11.6 |
2600 |
23.2 |
5200 |
31.5 |
1.24 |
9.8 |
0.38 |
|
8 |
5/16 |
8.4 |
0.331 |
860 |
1900 |
16.9 |
3800 |
33.8 |
7600 |
32.8 |
1.29 |
11.2 |
0.44 |
|
10 |
3/8 |
10 |
0.394 |
1200 |
2650 |
23.5 |
5300 |
47.2 |
10600 |
35 |
1.38 |
14 |
0.55 |
|
11.9 |
7/16 |
11.9 |
0.488 |
1680 |
3700 |
32.9 |
7400 |
65.8 |
14800 |
41.5 |
1.64 |
16.6 |
0.65 |
|
13 |
1/2 |
13 |
0.512 |
2030 |
4500 |
40 |
9000 |
80 |
18000 |
45.6 |
1.79 |
18.2 |
0.72 |
|
16 |
5/8 |
16 |
0.63 |
3130 |
6900 |
61.3 |
13800 |
122.8 |
27600 |
56 |
2.2 |
20 |
0.79 |
|
20 |
3/4 |
20 |
0.787 |
4800 |
10500 |
94.3 |
21200 |
188.6 |
42400 |
70 |
2.76 |
25 |
0.98 |
|
22 |
7/8 |
22 |
0.865 |
5810 |
12800 |
114.1 |
25600 |
228.2 |
51200 |
77 |
3.03 |
27.5 |
1.08 |
|
25 |
1 |
26 |
1.02 |
8140 |
17900 |
159.1 |
35800 |
318.2 |
71600 |
90.9 |
3.58 |
31.7 |
1.25 |
2.HIGH TEST CHAIN NACM96(G43)
|
ITEM NO. |
MATERIAL DIAMETER |
WORKING LOAD LIMIT (MAX) |
PROOF TEST (MIN) |
BREAKING FORCE (MIN) |
INSIDE LENGTH (MAX) |
INSIDE WIDTH (MIN) |
|||||||
|
MM |
IN |
MM |
IN |
KG |
LB |
KN |
LB |
KN |
LB |
MM |
IN |
MM |
IN |
|
7 |
1/4 |
7 |
0.276 |
1180 |
2800 |
17.3 |
3900 |
34.6 |
7800 |
31.5 |
1.24 |
9.8 |
0.38 |
|
8.7 |
5/16 |
8.7 |
0.343 |
1770 |
3900 |
26 |
5850 |
52 |
11700 |
32.8 |
1.29 |
11.2 |
0.44 |
|
10 |
3/8 |
10.3 |
0.406 |
2450 |
5400 |
36 |
8100 |
72 |
16200 |
35 |
1.38 |
14 |
0.55 |
|
11.9 |
7/16 |
11.9 |
0.468 |
3270 |
7200 |
48 |
10800 |
96 |
21600 |
41.6 |
1.64 |
16.6 |
0.65 |
|
13 |
1/2 |
13.5 |
0.531 |
4170 |
9200 |
61.3 |
13800 |
122.6 |
27600 |
45.5 |
1.79 |
18.2 |
0.72 |
|
16 |
5/8 |
16 |
0.63 |
5910 |
13000 |
86.5 |
19500 |
173 |
39000 |
56 |
2.2 |
20 |
0.79 |
3.TRANSPORT CHAIN NACM96(G70)
|
ITEM NO. |
MATERIAL DIAMETER |
WORKING LOAD LIMIT (MAX) |
PROOF TEST (MIN) |
BREAKING FORCE (MIN) |
INSIDE LENGTH (MAX) |
INSIDE WIDTH (MIN) |
|||||||
|
MM |
IN |
MM |
IN |
KG |
LB |
KN |
LB |
KN |
LB |
MM |
IN |
MM |
IN |
|
7 |
1/4 |
7 |
0.281 |
1430 |
3150 |
28 |
6300 |
56 |
12600 |
31.8 |
1.24 |
9.8 |
0.38 |
|
8.7 |
5/16 |
8.7 |
0.343 |
2130 |
4700 |
41.8 |
9400 |
83.6 |
18800 |
32.8 |
1.29 |
11.2 |
0.44 |
|
11.9 |
3/8 |
10 |
0.406 |
2990 |
6600 |
58.7 |
13200 |
117.4 |
26400 |
35 |
1.38 |
14 |
0.55 |
|
13 |
1/2 |
13.5 |
0.531 |
5130 |
11300 |
100.4 |
22600 |
200.8 |
45200 |
45.5 |
1.79 |
18.2 |
0.72 |
|
16 |
5/8 |
16 |
0.63 |
7170 |
15800 |
140.4 |
31600 |
280.8 |
63200 |
56 |
2.2 |
20 |
0.79 |
