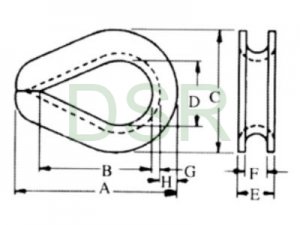

DSR090 U.S. Type Heavy Duty Wire Rope Thimble G-414美式重型套环
|
ITEM NO. in |
Dimensions(in) |
Weight/ 100pcs LBS |
|||||||
|
A |
B |
C |
D |
E |
F |
G |
H |
||
|
1/4 |
2.19 |
1.63 |
1.50 |
0.88 |
0.44 |
0.28 |
0.06 |
0.23 |
6.5 |
|
5/16 |
2.50 |
1.88 |
1.81 |
1.06 |
0.55 |
0.34 |
0.08 |
0.28 |
11.8 |
|
3/8 |
2.88 |
2.13 |
2.13 |
1.13 |
0.66 |
0.41 |
0.11 |
0.34 |
21.6 |
|
7/16 |
3.25 |
2.38 |
2.38 |
1.25 |
0.74 |
0.47 |
0.13 |
0.38 |
34.7 |
|
1/2-9/16 |
3.63 |
2.75 |
2.75 |
1.50 |
0.92 |
0.53 |
0.14 |
0.41 |
51.0 |
|
5/8 |
4.25 |
3.25 |
3.13 |
1.75 |
1.03 |
0.66 |
0.16 |
0.50 |
75.7 |
|
3/4 |
5.00 |
3.75 |
3.81 |
2.00 |
1.30 |
0.78 |
0.22 |
0.66 |
158.1 |
|
7/8 |
5.50 |
4.25 |
4.25 |
2.25 |
1.47 |
0.94 |
0.22 |
0.75 |
177.8 |
|
1 |
6.13 |
4.50 |
4.94 |
2.50 |
1.75 |
1.06 |
0.25 |
0.88 |
313.9 |
|
1-1/8-1-1/4 |
7.00 |
5.13 |
5.88 |
2.88 |
1.94 |
1.31 |
0.25 |
1.13 |
400.0 |
|
1-1/4-1-3/8 |
9.06 |
6.50 |
6.81 |
3.50 |
2.35 |
1.44 |
0.38 |
1.13 |
811.0 |
|
1-3/8-1-1/2 |
9.00 |
6.25 |
7.13 |
3.50 |
2.78 |
1.56 |
0.50 |
1.13 |
1294.8 |
|
1-5/8 |
11.25 |
8.00 |
8.13 |
4.00 |
3.02 |
1.72 |
0.50 |
1.38 |
1700.0 |
|
1-3/4 |
12.19 |
9.00 |
8.50 |
4.50 |
3.06 |
1.84 |
0.50 |
1.31 |
1775.0 |
|
1-7/8-2 |
15.13 |
12.00 |
10.38 |
6.00 |
3.38 |
2.09 |
0.50 |
1.50 |
2775.0 |
|
2-1/4 |
17.13 |
14.00 |
11.88 |
7.00 |
3.87 |
2.38 |
0.63 |
1.63 |
3950.0 |
