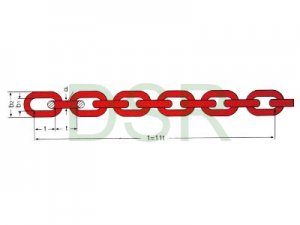

DSR114 DIN766 LINK CHAIN 德标DIN766链条
|
ITEM NO. |
INSIDE LENGHT t |
INSIDE WIDTH b1 |
OUTSIDE WIDTH b2 |
LENGTH PER11 LINKS
|
WEIGHT PER M kg |
|||||
|
mm |
±mm |
mm |
+ mm |
-mm |
mm |
mm |
mm |
+ mm |
-mm |
|
|
2 |
0.2 |
12 |
0.2 |
0.2 |
3.5 |
7.5 |
132 |
1.0 |
0.5 |
0.07 |
|
3 |
0.2 |
16 |
0.2 |
0.2 |
4.2 |
11 |
176 |
1.4 |
0.7 |
0.16 |
|
4 |
0.2 |
16 |
0.3 |
0.2 |
5 |
13.5 |
176 |
2.1 |
1.1 |
0.32 |
|
5 |
0.2 |
18.5 |
0.4 |
0.2 |
6 |
17 |
203.5 |
2.4 |
1.2 |
0.5 |
|
6 |
0.2 |
18.5 |
0.4 |
0.2 |
7.2 |
20.2 |
203.5 |
2.4 |
1.2 |
0.8 |
|
7 |
0.3 |
22 |
0.4 |
0.2 |
8.4 |
23.8 |
242 |
3.0 |
1.4 |
1.1 |
|
8 |
0.3 |
24 |
0.4 |
0.2 |
9.6 |
27.2 |
264 |
3.2 |
1.5 |
1.4 |
|
9 |
0.4 |
27 |
0.5 |
0.3 |
10.8 |
30.6 |
297 |
3.6 |
1.8 |
1.8 |
|
10 |
0.4 |
28 |
0.5 |
0.3 |
12 |
34 |
308 |
3.7 |
1.9 |
2.2 |
|
11 |
0.4 |
31 |
0.5 |
0.3 |
13.2 |
37.4 |
341 |
4.0 |
2.0 |
2.7 |
|
12 |
0.5 |
36 |
0.6 |
0.3 |
14.4 |
40.8 |
396 |
4.4 |
2.2 |
3.1 |
|
13 |
0.5 |
36 |
0.6 |
0.3 |
15.6 |
44.2 |
396 |
4.6 |
2.4 |
3.8 |
|
14 |
0.6 |
41 |
0.7 |
0.4 |
16.8 |
47.6 |
451 |
5.4 |
2.7 |
4.4 |
|
16 |
0.6 |
45 |
0.8 |
0.4 |
19.2 |
54.4 |
495 |
6.0 |
3.0 |
5.7 |
|
18 |
0.9 |
50 |
0.8 |
0.4 |
21.6 |
61.2 |
550 |
6.6 |
3.3 |
7.3 |
|
19 |
0.9 |
53 |
0.9 |
0.4 |
22.8 |
64.6 |
583 |
7.0 |
3.7 |
7.97 |
|
20 |
1.0 |
56 |
1.0 |
0.5 |
24.0 |
68.0 |
616 |
7.4 |
3.7 |
9.0 |
|
22 |
1.2 |
62 |
1.1 |
0.5 |
26.4 |
75.0 |
682 |
8.0 |
4.0 |
11.0 |
|
23 |
1.2 |
64 |
1.1 |
0.5 |
27.6 |
78.2 |
704 |
8.4 |
4.2 |
12 |
|
26 |
1.3 |
73 |
1.2 |
0.6 |
31.2 |
88.4 |
803 |
9.6 |
4.8 |
15 |
|
28 |
1.4 |
78 |
1.3 |
0.65 |
33.8 |
95.2 |
858 |
10.2 |
5.1 |
18 |
|
30 |
1.5 |
84 |
1.4 |
0.7 |
41.0 |
102 |
924 |
11.0 |
5.5 |
19.5 |
|
32 |
1.6 |
90 |
1.5 |
0.75 |
43.0 |
108.8 |
990 |
11.8 |
5.9 |
23.0 |
