DSR117 AUSTRALIAN STANDARD LINK CHAIN 澳大利亚标准链条
1.SHORT LINK CHAIN 短环链
|
ITEM NO.MM |
WORKING LOAD MT |

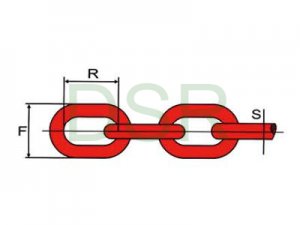

LINK DIMENSION |
LINKS PER M PC |
LENGTH PER 100KG |
|||
|
S MM |
R MM |
F MM |
B.F M |
H.D.G M |
|||
|
5 |
0.24 |
5 |
14.6 |
17.2 |
68.3 |
174 |
167 |
|
6 |
0.32 |
6.3 |
18.9 |
21.5 |
52.9 |
114 |
108 |
|
8 |
0.53 |
8.0 |
24.0 |
27.5 |
41.7 |
70.5 |
67.0 |
|
10 |
0.83 |
10.0 |
29.5 |
33.5 |
33.9 |
45.2 |
42.9 |
|
12 |
1.50 |
12.5 |
37.5 |
40.6 |
26.7 |
29.5 |
28.0 |
|
13 |
1.60 |
13 |
38.8 |
44.6 |
25.8 |
26.9 |
26.3 |
|
16 |
2.31 |
16 |
47.0 |
54.0 |
21.3 |
17.6 |
16.7 |
|
20 |
3.45 |
20 |
59.2 |
68.5 |
16.9 |
11.3 |
11.1 |
|
22 |
4.55 |
22 |
64.9 |
77.0 |
15.4 |
9.5 |
9.2 |
|
24 |
5.43 |
24 |
71.0 |
82.2 |
14.1 |
7.8 |
7.6 |
2. MEDIUM LINK CHAIN 中环链
|
ITEM NO.MM |
WORKING LOAD MT |
LINK DIMENSION |
LINKS PER M PC |
LENGTH PER 100KG |
|||
|
S MM |
R MM |
F MM |
B.F M |
H.D.G M |
|||
|
3 |
0.06 |
3.15 |
15.7 |
13.1 |
63.8 |
511 |
498 |
|
4 |
0.11 |
4.00 |
18.6 |
16.0 |
53.9 |
320 |
305 |
|
5 |
0.19 |
5.00 |
22.0 |
19.4 |
45.4 |
203 |
193 |
|
6 |
0.32 |
6.30 |
26.1 |
23.5 |
37.8 |
129 |
120 |
|
8 |
0.53 |
8.00 |
32.2 |
29.5 |
31.0 |
77.8 |
74.1 |
|
10 |
0.83 |
10.0 |
39.1 |
36.2 |
25.0 |
48.5 |
47.1 |
|
12 |
1.35 |
12.0 |
46.0 |
44.0 |
21.7 |
34 |
33.3 |
|
13 |
1.50 |
13.0 |
49.1 |
46.1 |
20.3 |
29.7 |
27.7 |
|
16 |
2.31 |
16.0 |
59.6 |
56.5 |
16.8 |
20.2 |
18.2 |
|
20 |
3.67 |
20.0 |
73.3 |
70.0 |
13.6 |
12.3 |
11.6 |
|
24 |
5.31 |
24.0 |
87.0 |
83.6 |
11.5 |
8.5 |
8.04 |
