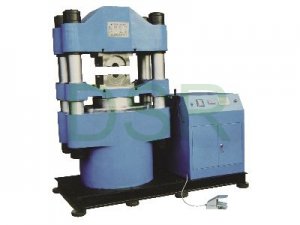

DSR167 Hydraulic Pressing Machine 钢丝绳压套机
|
Model 型号 |
Max. Force (KN) 最大压力 |
Max Dia in one pressing (mm) 一次压制最大绳径 |
Max Dia with Multi bite Pressing （mm） 多次压制最大绳径 |
Max Position Movement （mm） 最大行程 |
Position Working Movement (mm) 工作行程 |
Max working pressure （Mpa） 最大工作压力 |
The up speed of position (mm/sec) 活塞上行速度 |
The down speed of position (mm/sec) 活塞下行速度 |
Color 颜色 |
|
200 |
2000 |
20 |
22 |
80 |
50 |
28 |
4.4 |
5.0 |
Blue/Green |
|
300 |
3000 |
28 |
32 |
140 |
60 |
28 |
5.3 |
8.8 |
Blue/Green |
|
600 |
6000 |
38 |
44 |
160 |
100 |
28 |
4.5 |
8.7 |
Blue/Green |
|
1000 |
10000 |
46 |
56 |
220 |
130 |
28 |
3.7 |
7.6 |
Blue/Green |
|
1500 |
15000 |
46 |
60 |
220 |
200 |
42 |
10 |
10 |
Blue/Green |
|
2000 |
20000 |
65 |
70 |
220 |
200 |
52 |
10 |
10 |
Blue/Green |
Comparison Table for Dies.Aluminum Ferrules and Wire Ropes 模具、铝套与钢丝绳对照表
|
Aluminum Ferrules(mm) 铝管型号 |
Dies（mm） 模具型号 |
Wire rope dia with fiber core Fill factor(mm) 麻芯钢丝绳直径填充系数（0.4-0.5） |
Wire rope dia with steel core Fill factor(mm) 钢芯钢丝绳直径填充系数（0.4-0.5） |
Dia. after pressing 压后直径 (执行GB91-76) |
Pressure(KN) 压制力 |
|
|
mm |
Tolerance偏差 |
|||||
|
1 |
1 |
0.9~1.1 |
0.8~1.0 |
3 |
+0.10 |
5 |
|
1.5 |
1.5 |
1.2~1.6 |
1.1~1.4 |
3.8 |
10 |
|
|
2 |
2 |
1.7~2.1 |
1.5~1.9 |
4 |
+0.15 |
20 |
|
2.5 |
2.5 |
2.2~2.6 |
2.0~2.4 |
5 |
30 |
|
|
3 |
3 |
2.7~3.2 |
2.5~2.9 |
6 |
45 |
|
|
3.5 |
3.5 |
3.3~3.7 |
3.0~3.4 |
7 |
60 |
|
|
4 |
4 |
3.8~4.2 |
3.5~3.8 |
8 |
80 |
|
|
4.5 |
4.5 |
4.3~4.7 |
3.9~4.3 |
9 |
100 |
|
|
5 |
5 |
4.8~5.3 |
4.4~4.8 |
10 |
125 |
|
|
6 |
6 |
5.4~6.3 |
4.9~5.8 |
12 |
+0.30
|
180 |
|
6.5 |
6.5 |
6.4~6.8 |
5.9~6.2 |
13 |
210 |
|
|
7 |
7 |
6.9~7.4 |
6.3~6.7 |
14 |
250 |
|
|
8 |
8 |
7.5~8.4 |
6.8~7.7 |
16 |
320 |
|
|
9 |
9 |
8.5~9.5 |
7.8~8.6 |
18 |
410 |
|
|
10 |
10 |
9.6~10.5 |
8.7~9.6 |
20 |
+0.40 |
500 |
|
11 |
11 |
10.6~11.6 |
9.7~10.5 |
22 |
600 |
|
|
12 |
12 |
11.7~12.6 |
10.6~11.5 |
24 |
720 |
|
|
13 |
13 |
12.7~13.7 |
11.6~12.5 |
26 |
850 |
|
|
14 |
14 |
13.8~14.7 |
12.6~13.4 |
28 |
+0.50 |
1000 |
|
16 |
16 |
14.8~16.8 |
13.5~15.3 |
32 |
1300 |
|
|
18 |
18 |
16.9~18.9 |
15.4~17.3 |
36 |
+0.60 |
1600 |
|
20 |
20 |
19.0~21.0 |
17.4~19.2 |
40 |
2000 |
|
|
22 |
22 |
21.1~23.1 |
19.3~21.1 |
44 |
2400 |
|
|
24 |
24 |
23.2~25.2 |
21.2~23.0 |
48 |
+0.80 |
2900 |
|
26 |
26 |
25.3~27.3 |
23.1~24.9 |
52 |
3400 |
|
|
28 |
28 |
27.4~29.4 |
25.0~26.8 |
56 |
3900 |
|
Comparison Table for Dies.Aluminum Ferrules and Wire Ropes 模具、铝套与钢丝绳对照表
|
Aluminum Ferrules(mm) 铝管型号 |
Dies（mm） 模具型号 |
Wire rope dia with fiber core Fill factor (mm) 麻芯钢丝绳直径填充系数（0.4-0.5） |
Wire rope dia with steel core Fill factor(mm) 钢芯钢丝绳直径填充系数（0.4-0.5） |
Dia. after pressing 压后直径 (执行GB91-76) |
Pressure(KN) 压制力 |
|
|
mm |
Tolerance偏差 |
|||||
|
30 |
30 |
29.5~31.5 |
26.9~28.8 |
60 |
+1.00 |
4500 |
|
32 |
32 |
31.6~33.6 |
28.9~30.7 |
64 |
5100 |
|
|
34 |
34 |
33.7~35.7 |
30.8~32.6 |
68 |
5800 |
|
|
36 |
36 |
35.8~37.8 |
32.7~34.5 |
72 |
+1.10 |
6500 |
|
38 |
38 |
37.9~39.9 |
34.6~36.4 |
76 |
7200 |
|
|
40 |
40 |
40.0~42.0 |
36.5~38.3 |
80 |
8000 |
|
|
42 |
42 |
42.1~44.1 |
38.4~40.3 |
84 |
+1.30 |
8800 |
|
44 |
44 |
44.2~46.2 |
40.4~42.2 |
88 |
9700 |
|
|
46 |
46 |
46.3~48.3 |
42.3~44.4 |
92 |
10600 |
|
|
48 |
48 |
48.0~50.4 |
44.0~46.2 |
96 |
11500 |
|
|
50 |
50 |
48.4~52.5 |
44.2~47.9 |
100 |
+1.6 |
12500 |
|
52 |
52 |
52.0~54.6 |
46.3~47.9 |
104 |
13500 |
|
|
54 |
54 |
52.6~56.7 |
48.0~51.7 |
108 |
14600 |
|
|
56 |
56 |
56.0~58.8 |
50.5~51.9 |
112 |
+1.7 |
15700 |
|
58 |
58 |
56.8~60.9 |
51.8~55.6 |
116 |
16800 |
|
|
60 |
60 |
60.6~63.0 |
55.7~59.4 |
120 |
18000 |
|
|
62 |
62 |
61.0~65.1 |
59.5~63.2 |
124 |
+1.8 |
19200 |
|
66 |
66 |
65.2~69.3 |
63.3~67.1 |
132 |
22000 |
|
|
70 |
70 |
69.4~73.5 |
67.2~70.9 |
140 |
+2 |
24500 |
|
74 |
74 |
73.6~77.7 |
71.0~74.7 |
148 |
27000 |
|
|
78 |
78 |
77.8~81.9 |
74.8~78.6 |
156 |
30000 |
|
|
82 |
82 |
82.0~86.1 |
74.8~78.6 |
164 |
+2.2 |
34000 |
|
86 |
86 |
85.1~90.3 |
77.7~82.4 |
172 |
37000 |
|
|
94 |
94 |
93.7~98.7 |
82.5~90.2 |
188 |
44200 |
|
|
116 |
116 |
113.4~121.8 |
105.5~111.1 |
232 |
+2.6 |
67000 |
|
126 |
126 |
121.9~132.3 |
111.1~120.7 |
252 |
79000 |
|
