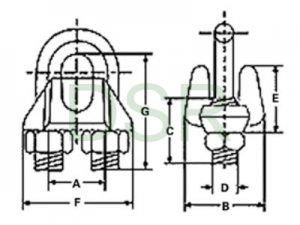

DSR086 U.S. Type Galv Malleable Wire Rope Clips 美式玛钢卡头
|
ITEM NO. in |
A mm |
B mm |
C mm |
D mm |
E mm |
F mm |
G mm |
Weight/100pcs KG |
|
1/8 |
11 |
14 |
14 |
3/16-24 |
10.8 |
22 |
20 |
1.5 |
|
3/16 |
13.5 |
15 |
16 |
1/4-20 |
13 |
26 |
24 |
3 |
|
1/4 |
17 |
18.5 |
20 |
5/16-18 |
15 |
32 |
31.5 |
5.18 |
|
5/16 |
18.3 |
20 |
22 |
5/16-18 |
16 |
35 |
34 |
5.95 |
|
3/8 |
22.5 |
22 |
27 |
3/8-16 |
22 |
40.5 |
41.8 |
10.01 |
|
7/16 |
24 |
23 |
30 |
3/8-16 |
22 |
43 |
42.8 |
11.43 |
|
1/2 |
27 |
26 |
35 |
7/16-14 |
23.3 |
49 |
53.9 |
17.42 |
|
9/16 |
30 |
26.5 |
40 |
1/2-13 |
27 |
52.5 |
54.7 |
22.56 |
|
5/8 |
33 |
28.5 |
40 |
1/2-13 |
28 |
57.5 |
59.2 |
24.84 |
|
3/4 |
34.5 |
32 |
42 |
9/16-12 |
34 |
61 |
68.7 |
36.53 |
|
7/8 |
41 |
37 |
46 |
5/8-11 |
38 |
71 |
78 |
53.23 |
|
1 |
45.5 |
42 |
55 |
5/8-11 |
43 |
77.5 |
87.5 |
68.32 |
