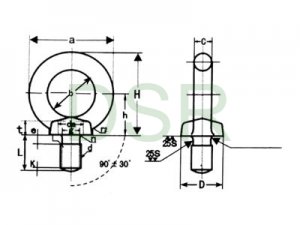

DSR096 JIS B1168 EYE BOLT 日式B1168吊环螺栓
|
Designation of Eye Bit (d) |
a mm |
b mm |
c mm |
D mm |
t mm |
h mm |
H (Ref.) |
L mm |
e mm |
g mm (Min) |
r1 mm (Min) |
da mm (Max) |
r2 mm (Approx) |
K mm (Approx) |
WLL |
Approx Weight/KG |
||
|
M |
W |
M kn(kg) |
W kn(kg) |
|||||||||||||||
|
6 |
1/4 |
26 |
16 |
5.8 |
13.5 |
6 |
14 |
27 |
14 |
2 |
4.5 |
0.8 |
7.1 |
2 |
1 |
0.588(60) |
|
0.016 |
|
8 |
5/16 |
32.6 |
20 |
6.3 |
16 |
5 |
17 |
33.3 |
15 |
3 |
6 |
1 |
9.2 |
4 |
1.2 |
0.785(80) |
|
0.03 |
|
10 |
3/8 |
41 |
25 |
8 |
20 |
7 |
21 |
41.5 |
18 |
4 |
7.7 |
1.2 |
11.2 |
4 |
1.5 |
1.47(150) |
1.37(140) |
0.06 |
|
12 |
1/2 |
50 |
30 |
10 |
25 |
9 |
26 |
51 |
22 |
5 |
9.4 |
1.4 |
14.2 |
6 |
2 |
2.16(220) |
2.16(220) |
0.12 |
|
16 |
5/8 |
60 |
35 |
12.5 |
30 |
11 |
30 |
60 |
27 |
5 |
13 |
1.6 |
18.2 |
6 |
2 |
4.41(450) |
3.92(400) |
0.22 |
|
20 |
3/4 |
72 |
40 |
16 |
35 |
13 |
35 |
71 |
30 |
6 |
16.4 |
2 |
22.4 |
8 |
2.5 |
6.18(630) |
5.88(600) |
0.39 |
|
22 |
7/8 |
80 |
44 |
19 |
40 |
16.5 |
43 |
84 |
35 |
7 |
18.5 |
2.3 |
24.4 |
10 |
2.5 |
7.74(790) |
7.84(800) |
0.56 |
|
24 |
1 |
90 |
50 |
20 |
45 |
18 |
45 |
90 |
38 |
8 |
19.6 |
2.5 |
26.4 |
12 |
3 |
9.32(950) |
9.32(950) |
0.80 |
|
30 |
1-1/4 |
110 |
60 |
25 |
60 |
22 |
55 |
110 |
45 |
8 |
25 |
3 |
33.4 |
15 |
3.5 |
14.7(1500) |
14.7(1500) |
1.56 |
|
36 |
1-1/2 |
133 |
70 |
31.5 |
70 |
26 |
65 |
131.5 |
55 |
10 |
30.3 |
3 |
39.4 |
18 |
4 |
22.6(2300) |
22.6(2300) |
2.90 |
|
42 |
1-3/4 |
151 |
80 |
35.5 |
80 |
30 |
75 |
150.5 |
65 |
12 |
35.6 |
3.5 |
45.6 |
20 |
4.5 |
33.3(3400) |
33.3(3400) |
4.40 |
|
48 |
2 |
170 |
90 |
40 |
90 |
35 |
85 |
170 |
70 |
12 |
41 |
4 |
52.6 |
22 |
5 |
44.1(4500) |
44.1(4500) |
6.10 |
|
64 |
2-1/2 |
210 |
110 |
50 |
110 |
42 |
105 |
210 |
90 |
14 |
55.7 |
5 |
71 |
25 |
6 |
88.3(9000) |
88.3(9000) |
11.50 |
