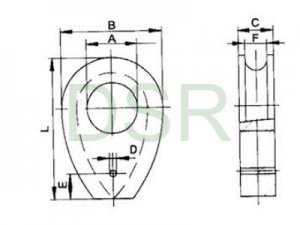

DSR110 SOLD THIMBLE 重型套环
|
ITEM NO. mm |
F mm |
C mm |
A mm |
B mm |
L mm |
D mm |
E mm |
Weight/ KG |
|
8 |
8.6 |
14 |
20 |
40 |
56 |
5 |
12 |
0.08 |
|
10 |
10.8 |
17 |
25 |
50 |
70 |
5 |
12 |
0.17 |
|
12 |
13 |
21 |
30 |
60 |
84 |
5 |
15 |
0.32 |
|
14 |
15.1 |
24 |
35 |
70 |
98 |
5 |
20 |
0.50 |
|
16 |
17.2 |
28 |
40 |
80 |
112 |
5 |
20 |
0.78 |
|
18 |
19.4 |
31 |
45 |
90 |
126 |
5 |
20 |
1.14 |
|
20 |
21.5 |
35 |
50 |
100 |
140 |
10 |
30 |
1.41 |
|
22 |
24 |
38 |
55 |
110 |
154 |
10 |
30 |
1.96 |
|
24 |
26 |
42 |
60 |
120 |
168 |
10 |
30 |
2.41 |
|
26 |
28 |
45 |
65 |
130 |
182 |
10 |
30 |
3.46 |
|
28 |
30.1 |
49 |
70 |
140 |
196 |
10 |
30 |
4.30 |
|
32 |
34.4 |
56 |
80 |
160 |
224 |
10 |
30 |
6.46 |
|
36 |
39 |
63 |
90 |
180 |
252 |
10 |
30 |
9.77 |
|
40 |
43 |
70 |
100 |
200 |
280 |
10 |
30 |
12.94 |
|
44 |
47.3 |
77 |
110 |
220 |
308 |
15 |
45 |
17.02 |
|
48 |
51.6 |
84 |
120 |
240 |
336 |
15 |
45 |
22.75 |
|
52 |
56 |
91 |
130 |
260 |
364 |
15 |
45 |
28.41 |
|
56 |
60.2 |
98 |
140 |
280 |
392 |
15 |
45 |
35.56 |
|
60 |
64.5 |
105 |
150 |
300 |
420 |
15 |
45 |
48.35 |
