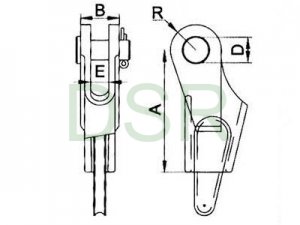

DSR111 OPEN WEDGE SOCKETS 钢丝绳楔形接头
|
ITEM NO. mm |
WLL/ KN |
A mm |
B mm |
D mm |
E mm |
R mm |
Opening mm |
Weight/KG |
|
6 |
10 |
90 |
29 |
16 |
13 |
16 |
4x24 |
0.56 |
|
8 |
10 |
100 |
31 |
18 |
15 |
25 |
4x26 |
0.77 |
|
10 |
15 |
120 |
38 |
20 |
18 |
25 |
5x30 |
1.01 |
|
12 |
20 |
155 |
44 |
25 |
20 |
30 |
5x35 |
1.70 |
|
14 |
25 |
185 |
51 |
30 |
23 |
35 |
6.3x45 |
2.34 |
|
16 |
30 |
195 |
60 |
34 |
26 |
42 |
6.3x50 |
3.27 |
|
18 |
35 |
195 |
64 |
36 |
28 |
44 |
6.3x50 |
4.00 |
|
20 |
50 |
220 |
72 |
38 |
30 |
50 |
6.3x50 |
5.45 |
|
22 |
55 |
240 |
76 |
40 |
32 |
52 |
6.3x55 |
6.37 |
|
24 |
65 |
260 |
83 |
50 |
35 |
60 |
6.3x65 |
8.32 |
|
26 |
75 |
280 |
92 |
55 |
38 |
65 |
8x75 |
10.16 |
|
28 |
95 |
305 |
94 |
55 |
40 |
70 |
8x75 |
13.94 |
|
32 |
120 |
360 |
110 |
65 |
44 |
77 |
8x90 |
17.94 |
|
36 |
155 |
390 |
122 |
70 |
48 |
85 |
8x95 |
23.03 |
|
40 |
200 |
470 |
145 |
75 |
55 |
90 |
8x100 |
32.35 |
|
42 |
220 |
480 |
160 |
82 |
60 |
96 |
10x100 |
76.00 |
|
44 |
240 |
520 |
164 |
85 |
64 |
105 |
10x100 |
85.50 |
|
48 |
280 |
530 |
174 |
90 |
70 |
100 |
10x100 |
95.00 |
|
52 |
320 |
570 |
184 |
90 |
74 |
105 |
10x100 |
128.00 |
