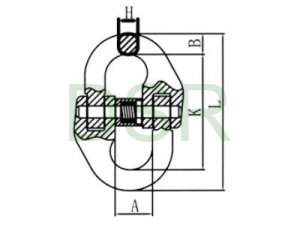

DSR023 G80 EUROPEAN TYPE CONNECTING LINK G80欧式链接双环扣
|
ITEM NO.mm |
WEIGHT/KG |
WLL/T |
B.L/T |
Dimensions（mm） |
||||
|
A±1.5 |
B±1 |
L±2.5 |
K±2 |
H±1 |
||||
|
6 |
0.08 |
1.12 |
4.48 |
15 |
7.5 |
58 |
42 |
7 |
|
7/8 |
0.146 |
2 |
8 |
18 |
9.5 |
79.5 |
60.5 |
8.5 |
|
10 |
0.3 |
3.15 |
12.6 |
25 |
12 |
90.5 |
68 |
11.5 |
|
13 |
0.65 |
5.3 |
21.2 |
29 |
15 |
117 |
87 |
15 |
|
16 |
1.15 |
8 |
32 |
34.5 |
19.8 |
148 |
108.4 |
19.8 |
|
18 |
1.84 |
10 |
40 |
38 |
21 |
154 |
112 |
21 |
|
20 |
2.1 |
12.5 |
50 |
41 |
24 |
169.5 |
121.5 |
24 |
|
22 |
2.87 |
15 |
60 |
48 |
26 |
193.5 |
141.5 |
26 |
|
26 |
4.5 |
21.2 |
84.8 |
57.5 |
31 |
220 |
158 |
30 |
|
32 |
8.21 |
31.5 |
126 |
67 |
38 |
281 |
205 |
37 |
Ultimate load is 4times the working load limit 破断拉力是工作拉力的4倍
