DSR025 G80 WEB SLING CONNECTOR G80吊带双环扣
|
ITEM NO.mm |
WEIGHT/KG |
WLL/T |
B.L/T |

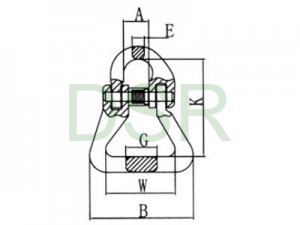

Dimensions（mm） |
|||||
|
A±1.5 |
B±2 |
K±2 |
W±2 |
G±1 |
E±1 |
||||
|
6 |
0.2 |
1.12 |
4.48 |
15 |
60 |
56 |
40 |
18 |
7 |
|
7/8 |
0.3 |
2.0 |
8.0 |
20 |
61.5 |
63.7 |
40 |
24 |
9.5 |
|
10 |
0.68 |
3.15 |
12.6 |
24 |
66 |
83 |
39 |
30.5 |
11 |
|
13 |
1.47 |
5.3 |
21.2 |
28 |
88 |
93.7 |
55 |
36.8 |
16.5 |
|
16 |
2.3 |
8 |
32 |
34.5 |
108 |
120 |
65.5 |
45.2 |
19.8 |
|
20 |
3.3 |
12.5 |
50 |
41 |
129 |
138 |
80 |
51.8 |
23 |
|
22 |
6.89 |
15 |
60 |
50 |
191 |
180 |
126 |
70 |
26 |
|
26 |
10.62 |
21.2 |
84.8 |
58 |
228.4 |
209.5 |
152 |
86 |
30 |
|
32 |
18.92 |
31.5 |
126 |
72.5 |
252 |
279 |
160 |
91 |
55 |
Ultimate load is 4times the working load limit 破断拉力是工作拉力的4倍
