DSR029 A-343 G80 MASTER LINK G80强力环A-343
|
ITEM NO.mm |
WEIGHT/KG |
WLL/T |
B.L/T |

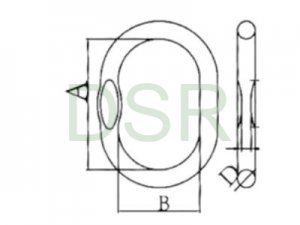

Dimensions（mm） |
||||
|
A |
B |
D |
S |
L |
||||
|
6 |
0.34 |
1.6 |
6.4 |
110 |
60 |
13 |
7 |
25 |
|
7 |
0.54 |
2.12 |
8.48 |
110 |
60 |
16 |
7 |
25 |
|
8 |
0.82 |
3.15 |
12.6 |
135 |
75 |
18 |
7 |
35 |
|
10 |
1.5 |
5.3 |
21.2 |
160 |
90 |
22 |
11 |
35 |
|
13 |
2.3 |
8 |
32 |
180 |
100 |
26 |
13 |
45 |
|
16 |
3.95 |
11.2 |
44.8 |
200 |
110 |
32 |
17 |
45 |
|
18 |
6.34 |
14 |
56 |
260 |
140 |
36 |
- |
- |
|
20 |
8.96 |
17 |
68 |
300 |
160 |
40 |
- |
- |
|
22 |
12.8 |
21.2 |
84.8 |
340 |
180 |
45 |
- |
- |
|
26 |
16.55 |
31.5 |
126 |
350 |
190 |
50 |
- |
- |
|
32 |
23.28 |
45 |
180 |
400 |
200 |
56 |
- |
- |
|
36 |
32 |
56 |
224 |
430 |
220 |
63 |
- |
- |
|
40 |
45.76 |
63 |
252 |
460 |
250 |
72 |
- |
- |
|
45 |
62 |
85.46 |
341.84 |
500 |
270 |
80 |
- |
- |
Ultimate load is 4times the working load limit 破断拉力是工作拉力的4倍
