DSR030 A-345 G80 MASTER LINK ASSEMBLY G80子母环A-345
|
ITEM NO.in |
WEIGHT/KG |
WLL/T |
B.L/T |

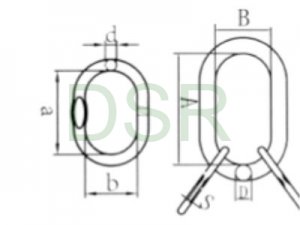

Dimensions（mm） |
||||||
|
A |
B |
D |
a |
b |
d |
s |
||||
|
3/4 |
1.55 |
4.1 |
20.5 |
140 |
70 |
20 |
85 |
40 |
14 |
7.6 |
|
1 |
3.29 |
8.4 |
42 |
178 |
89 |
25 |
100 |
60 |
18 |
8.4 |
|
1-1/4 |
7.18 |
14.1 |
70.5 |
220 |
110 |
32 |
100 |
60 |
22 |
13.5 |
|
1-1/2 |
12.91 |
21.3 |
106.5 |
264 |
135 |
38 |
180 |
100 |
28 |
16.5 |
|
1-3/4 |
21.25 |
33.3 |
166.5 |
305 |
152 |
45 |
180 |
100 |
35 |
18.5 |
|
2 |
30.34 |
40.3 |
201.5 |
356 |
178 |
50 |
180 |
100 |
38 |
- |
Ultimate load is 4times the working load limit 破断拉力是工作拉力的4倍
