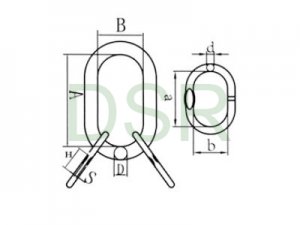

DSR031 A-346 G80 MASTER LINK ASSEMBLY G80子母环 A-346
|
ITEM NO.mm |
WEIGHT/KG |
WLL/T |
B.L/T |
Dimensions（mm） |
|||||||
|
A |
B |
D |
a |
b |
d |
s |
H |
||||
|
6 |
1.18 |
2.36 |
9.44 |
135 |
75 |
18 |
54 |
25 |
13 |
7 |
25 |
|
7 |
1.24 |
3.15 |
12.6 |
135 |
75 |
18 |
60 |
38 |
13 |
7 |
25 |
|
8 |
2.2 |
4.25 |
17 |
160 |
90 |
22 |
70 |
34 |
16 |
7 |
25 |
|
10 |
3.4 |
6.7 |
26.8 |
180 |
100 |
26 |
85 |
40 |
18 |
11 |
35 |
|
13 |
6.1 |
11.2 |
44.8 |
200 |
110 |
32 |
115 |
50 |
22 |
13 |
35 |
|
16 |
9.98 |
17 |
68 |
260 |
140 |
36 |
140 |
65 |
26 |
17 |
45 |
|
18 |
18.9 |
21.2 |
84.8 |
340 |
180 |
45 |
180 |
100 |
32 |
- |
- |
|
20 |
22.6 |
26.5 |
106 |
350 |
190 |
50 |
180 |
100 |
32 |
- |
- |
|
22 |
25.2 |
31.5 |
126 |
350 |
190 |
50 |
180 |
100 |
36 |
- |
- |
|
26 |
34.26 |
45 |
180 |
400 |
200 |
56 |
200 |
110 |
40 |
- |
- |
|
28 |
47.11 |
50 |
200 |
430 |
220 |
63 |
200 |
110 |
45 |
- |
- |
|
32 |
66.46 |
63 |
252 |
460 |
250 |
72 |
200 |
110 |
50 |
- |
- |
Ultimate load is 4times the working load limit 破断拉力是工作拉力的4倍
