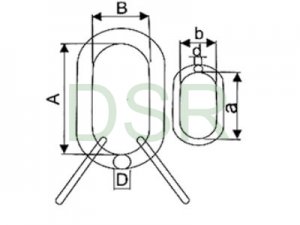

DSR033 G80 MASTER LINK ASSEMBLY G80子母环
|
ITEM NO.in |
WEIGHT/KG |
WLL/T |
B.L/T |
Dimensions（mm） |
|||||
|
A |
B |
D |
a |
b |
d |
||||
|
3/4 |
1.58 |
4.7 |
23.5 |
140 |
70 |
20 |
85 |
40 |
14 |
|
7/8 |
2.2 |
6.4 |
32 |
160 |
90 |
22 |
70 |
34 |
16 |
|
7/8 |
2.66 |
8 |
40 |
178 |
89 |
22 |
85 |
40 |
18 |
|
1 |
3.99 |
11 |
55 |
178 |
89 |
25 |
100 |
60 |
22 |
|
1-1/4 |
5.89 |
16 |
80 |
220 |
110 |
32 |
100 |
60 |
22 |
|
1-1/2 |
12.52 |
21.7 |
108.5 |
270 |
140 |
38 |
180 |
100 |
28 |
|
1-3/4 |
16.22 |
25 |
125 |
320 |
170 |
45 |
225 |
125 |
36 |
|
2 |
26.11 |
30 |
150 |
350 |
190 |
50 |
180 |
100 |
38 |
|
2-1/4 |
35.84 |
45 |
225 |
406 |
203 |
56 |
200 |
110 |
40 |
|
2-1/2 |
43.88 |
50 |
250 |
410 |
220 |
60 |
200 |
110 |
45 |
Ultimate load is 4times the working load limit 破断拉力是工作拉力的4倍
