DSR035 FORGED ALLOY STEEL PEAR SHAPED LINK 合金钢锻造梨形环
|
ITEM NO.in |
WEIGHT/KG |
WLL/T |
B.L/T |

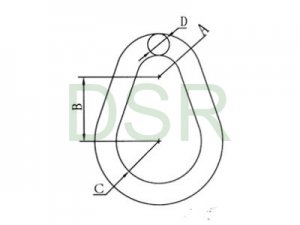

Dimensions（mm） |
|||
|
A |
B |
C |
D |
||||
|
3/8 |
0.1 |
1.6 |
8 |
10 |
28.5 |
19 |
10 |
|
1/2 |
0.25 |
3.2 |
16 |
12.5 |
38 |
25.5 |
12.5 |
|
5/8 |
0.50 |
4.1 |
20.5 |
16 |
47.5 |
32 |
16.0 |
|
3/4 |
0.80 |
5.6 |
28 |
19 |
57 |
38 |
19 |
|
7/8 |
1.4 |
6.4 |
32 |
22 |
67 |
44.5 |
22.2 |
|
1 |
1.9 |
11 |
55 |
25 |
76 |
51.0 |
25.4 |
|
1-1/8 |
2.92 |
13.9 |
69.5 |
28 |
86 |
57.0 |
28.5 |
|
1-1/4 |
3.75 |
16.3 |
81.5 |
32 |
95 |
63.5 |
32 |
|
1-3/8 |
5.12 |
19.5 |
97.5 |
35 |
105 |
70.0 |
35 |
|
1-1/2 |
6.5 |
24.6 |
123 |
38 |
114 |
76.0 |
38 |
|
1-5/8 |
8.4 |
28.4 |
142 |
41.5 |
124 |
82.5 |
41.3 |
|
1-3/4 |
10.21 |
38.5 |
192.5 |
44.5 |
133 |
89.0 |
44.5 |
|
1-7/8 |
13.15 |
43.5 |
217.5 |
48 |
143 |
95.5 |
47.6 |
|
2 |
15.42 |
46.5 |
232.5 |
51 |
152.5 |
102 |
51.0 |
|
2-1/4 |
21.78 |
64.9 |
324.5 |
57.5 |
171.5 |
114.5 |
57.0 |
|
2-1/2 |
29.94 |
66.8 |
334 |
63.5 |
190.5 |
127 |
63.5 |
|
2-3/4 |
39.92 |
98.4 |
492 |
70 |
209.5 |
140 |
70.0 |
|
3 |
51.71 |
103.4 |
517 |
76.5 |
229 |
152.5 |
76.0 |
|
3-1/4 |
66.23 |
118.9 |
594.5 |
82.5 |
248 |
165 |
82.5 |
|
3-1/2 |
82.1 |
126.6 |
633 |
89 |
257.5 |
178 |
89.0 |
|
4 |
122.93 |
169.2 |
846 |
102 |
305 |
203.5 |
101.5 |
Ultimate load is 5times the working load limit 破断拉力是工作拉力的5倍
