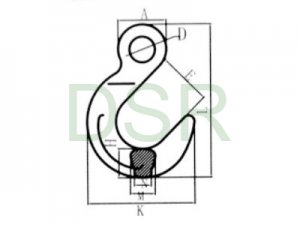

DSR008 G80 EYE FOUNDRY HOOK G80小眼滑钩
|
ITEM NO.mm |
WEIGHT/KG |
WLL/T |
B.L/T |
Dimensions（mm） |
|||||||
|
E±1.2 |
A±1 |
D±1 |
H±1 |
M±1 |
N±0.5 |
K±2 |
L±2 |
||||
|
7/8 |
1.09 |
2 |
8 |
63.5 |
39 |
18 |
31 |
25.4 |
18 |
120 |
163 |
|
10 |
2.04 |
3.15 |
12.6 |
76 |
50.8 |
22 |
38 |
32.6 |
23 |
146 |
200 |
|
13 |
3.22 |
5.3 |
21.2 |
89 |
63.5 |
27 |
44.5 |
38.1 |
27 |
171 |
238 |
|
16 |
5.53 |
8 |
32 |
102 |
76 |
32 |
52 |
46 |
32 |
198 |
278 |
|
20 |
8.75 |
12.5 |
50 |
114.5 |
89 |
38 |
65 |
55 |
39 |
232 |
325 |
|
22 |
11.93 |
15 |
60 |
127.5 |
102 |
45 |
69 |
57 |
40 |
256 |
361 |
|
26 |
16.8 |
21.2 |
84.8 |
140 |
126 |
67.5 |
77 |
66 |
45 |
283 |
402 |
|
32 |
26.6 |
31.5 |
126 |
153.5 |
151.5 |
81.5 |
97.5 |
80 |
58 |
327 |
461 |
Ultimate load is 4times the working load limit 破断拉力是工作拉力的4倍
