DSR009 G80 EYE FOUNDRY HOOK WITH FLAT ON EYE G80压扁大开口钩
|
ITEM NO.mm |
WEIGHT/KG |
WLL/T |
B.L/T |

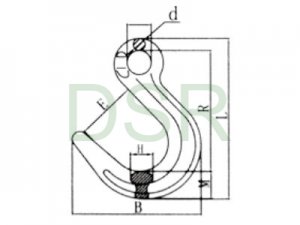

Dimensions（mm） |
|||||||
|
D |
L |
B |
R |
E |
d |
H |
M |
||||
|
6 |
0.382 |
1.12 |
4.48 |
20.5 |
133 |
100 |
102.7 |
49 |
10 |
17 |
19 |
|
7/8 |
0.72 |
2 |
8 |
24 |
158.5 |
130 |
120.5 |
62 |
12 |
19 |
26 |
|
10 |
1.25 |
3.15 |
12.6 |
31.5 |
199 |
152.5 |
153.2 |
73 |
15 |
25 |
31 |
|
13 |
2.32 |
5.3 |
21.2 |
44 |
241.5 |
186 |
184 |
90 |
19 |
33 |
38.5 |
|
16 |
3.45 |
8 |
32 |
49 |
279 |
218 |
216 |
105 |
22 |
37 |
41 |
|
20 |
6.42 |
12.5 |
50 |
60 |
330 |
252 |
247 |
114 |
26 |
46 |
57 |
Ultimate load is 4times the working load limit 破断拉力是工作拉力的4倍
