DSR010 G80 EYE SHORTENING GRAB HOOK G80眼型带翅抓钩
|
ITEM NO.mm |
WEIGHT/KG |
WLL/T |
B.L/T |

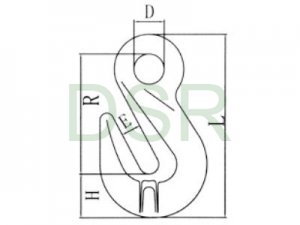

Dimensions（mm） |
||||
|
E±0.5 |
D±1 |
H±1 |
R±2 |
L±2 |
||||
|
6 |
0.14 |
1.12 |
4.48 |
8 |
13.5 |
17.9 |
51.4 |
75.3 |
|
7/8 |
0.245 |
2 |
8 |
10.8 |
18 |
20 |
61.5 |
91.2 |
|
10 |
0.65 |
3.15 |
12.6 |
13 |
20 |
29 |
80 |
122 |
|
13 |
1.39 |
5.3 |
21.2 |
16.5 |
26 |
42.8 |
99.7 |
158 |
|
16 |
2.2 |
8 |
32 |
20 |
30.5 |
47.7 |
104 |
169 |
|
20 |
4.6 |
12.5 |
50 |
25 |
37.5 |
56 |
140 |
219 |
|
22 |
8.2 |
15 |
60 |
28 |
44 |
68 |
165 |
259 |
|
26 |
9.8 |
21.2 |
84.8 |
30 |
44 |
77 |
188.8 |
298 |
|
32 |
19.4 |
31.5 |
126 |
38 |
57 |
95 |
228 |
361 |
Ultimate load is 4times the working load limit 破断拉力是工作拉力的4倍
