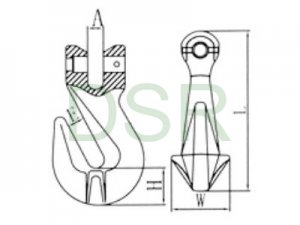

DSR014 G80 CLEVIS GRAB HOOK G80羊角带翅抓钩
|
ITEM NO.mm |
WEIGHT/KG |
WLL/T |
B.L/T |
Dimensions（mm） |
||||
|
E±1 |
A±0.5 |
H±1 |
W±1 |
L±2 |
||||
|
6 |
0.25 |
1.12 |
4.48 |
8.3 |
8 |
17.7 |
26.7 |
75 |
|
7/8 |
0.32 |
2 |
8 |
11 |
9.5 |
18.5 |
33.5 |
89 |
|
10 |
0.73 |
3.15 |
12.6 |
13 |
12.5 |
29 |
46 |
126 |
|
13 |
1.6 |
5.3 |
21.2 |
16.5 |
15 |
42.7 |
57.5 |
163.5 |
|
16 |
2.8 |
8 |
32 |
19 |
18.5 |
45 |
74 |
183.5 |
|
20 |
5 |
12.5 |
50 |
24 |
23 |
56 |
74 |
219 |
|
22 |
6.3 |
15 |
60 |
27 |
27 |
68.5 |
90 |
254 |
|
26 |
14.5 |
21.2 |
84.8 |
30 |
30 |
77 |
102 |
309 |
Ultimate load is 4times the working load limit 破断拉力是工作拉力的4倍
