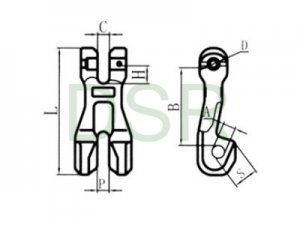

DSR018 G80 CLEVIS CLUTCH G80链条调节器
|
ITEM NO.mm |
WEIGHT/KG |
WLL/T |
B.L/T |
Dimensions（mm） |
|||||||
|
P±0.5 |
C±0.5 |
A±0.3 |
B±2 |
H±1 |
S±0.3 |
L±2 |
D±0.5 |
||||
|
6 |
0.17 |
1.12 |
4.48 |
7.5 |
7.5 |
8 |
44 |
10.3 |
12 |
73.5 |
7.8 |
|
7/8 |
0.37 |
2 |
8 |
9.5 |
9.5 |
10.5 |
61.7 |
14 |
17 |
101 |
9.2 |
|
10 |
0.97 |
3.15 |
12.6 |
13 |
13 |
12.4 |
92 |
18.4 |
28 |
138 |
13.2 |
|
13 |
2.01 |
5.3 |
21.2 |
16.5 |
16.5 |
16 |
115 |
22.7 |
34.5 |
177 |
16.2 |
|
16 |
3.32 |
8 |
32 |
21 |
21 |
19.5 |
143 |
28.5 |
40 |
220 |
20 |
|
20 |
6.2 |
12.5 |
50 |
23.5 |
23.5 |
23 |
152 |
33.6 |
46 |
238 |
24.3 |
|
22 |
8.5 |
15 |
60 |
25.5 |
25.5 |
26 |
195 |
39 |
57.5 |
295 |
28.1 |
Ultimate load is 4times the working load limit 破断拉力是工作拉力的4倍
