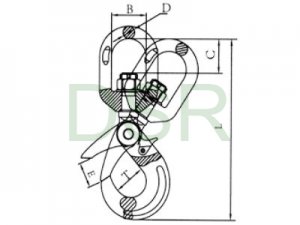

DSR003 G80 EUROPEAN TYPE SWIVEL SELF-LOCKING HOOK G80欧式旋转安全钩
|
ITEM NO.mm |
WEIGHT/KG |
WLL/T |
B.L/T |
Dimensions（mm） |
|||||
|
B±2 |
C±2 |
D±1 |
L±3 |
T±1.5 |
E±2 |
||||
|
6 |
0.71 |
1.12 |
4.48 |
32.5 |
22 |
11.25 |
170 |
34 |
29 |
|
7/8 |
1.1 |
2 |
8 |
35.5 |
26 |
12.5 |
210 |
46 |
34 |
|
10 |
2 |
3.15 |
12.6 |
42 |
34 |
15 |
247 |
56 |
44 |
|
13 |
4 |
5.3 |
21.2 |
50 |
38.5 |
16 |
302 |
69 |
52 |
|
16 |
7.3 |
8 |
32 |
61 |
55 |
21.5 |
383 |
86 |
60 |
|
20 |
11.6 |
12.5 |
50 |
72 |
61 |
26 |
418 |
100 |
83 |
|
22 |
16 |
15 |
60 |
95 |
95 |
33 |
527 |
98 |
88 |
|
26 |
21.5 |
21.2 |
84.8 |
122 |
115 |
42 |
610 |
110 |
95.5 |
|
32 |
79 |
31.5 |
126 |
140 |
126 |
52 |
777 |
166 |
150 |
Ultimate load is 4times the working load limit 破断拉力是工作拉力的4倍
