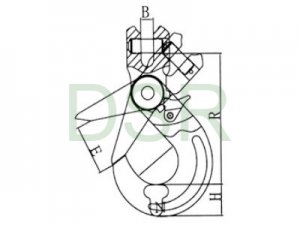

DSR002 G80 EUROPEAN TYPE CLEVIS SELF-LOCKING HOOK G80欧式羊角安全钩
|
ITEM NO.mm |
WEIGHT/KG |
WLL/T |
B.L/T |
Dimensions（mm） |
||||
|
E±2 |
B±0.5 |
H±1 |
N±1.5 |
R |
||||
|
6 |
0.5 |
1.12 |
4.48 |
29 |
8.5 |
19.5 |
34 |
95.5 |
|
7/8 |
0.8 |
2 |
8 |
34 |
9.5 |
24 |
46 |
121 |
|
10 |
1.5 |
3.15 |
12.6 |
44 |
12 |
30 |
56 |
146 |
|
13 |
2.8 |
5.3 |
21.2 |
52 |
15 |
40 |
69 |
182 |
|
16 |
5.6 |
8 |
32 |
60 |
18 |
50.5 |
86 |
218 |
|
20 |
7.5 |
12.5 |
50 |
83 |
25 |
55 |
100 |
240 |
|
22 |
11.5 |
15 |
60 |
88 |
25.5 |
67 |
98 |
276.5 |
|
26 |
18.5 |
21.2 |
84.8 |
95.5 |
30 |
75 |
110 |
310.5 |
|
32 |
49.1 |
31.5 |
126 |
160 |
36 |
97 |
166 |
400.5 |
Ultimate load is 4times the working load limit 破断拉力是工作拉力的4倍
