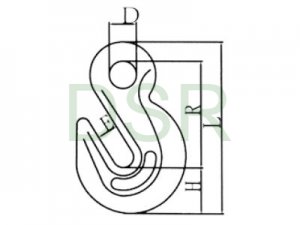

DSR038 H-323/A-323 U.S. TYPE EYE GRAB HOOK H-323/A-323美式眼型抓钩
|
ITEM NO.in |
WEIGHT/LBS |
WLL/LBS |
Dimensions（mm） |
|||||
|
H-323 CARBON |
A-323 ALLOY |
R±1 |
H±1 |
D±0.5 |
E±0.5 |
L±1 |
||
|
1/4 |
0.28 |
2600 |
3150 |
50.5 |
18.5 |
13 |
9 |
77 |
|
5/16 |
0.45 |
3900 |
4700 |
56.8 |
22.7 |
14 |
11.5 |
89 |
|
3/8 |
0.79 |
5400 |
6600 |
65.2 |
28.3 |
17 |
13 |
104 |
|
7/16 |
1.26 |
7200 |
8750 |
77 |
33.5 |
20 |
15.5 |
122 |
|
1/2 |
1.75 |
9200 |
11300 |
85.5 |
37.5 |
22 |
17 |
135 |
|
5/8 |
3.25 |
13000 |
15800 |
116 |
45 |
30 |
21 |
180 |
|
3/4 |
5.94 |
20200 |
24700 |
133.5 |
55 |
35 |
25 |
211 |
Ultimate load is 4times the working load limit 破断拉力是工作拉力的4倍
