DSR050 FORGED SHANK HOOK 锻造直杆钩
|
ITEM NO. |
WEIGHT/KG |
ALLOY STEEL |
CARBON STEEL |

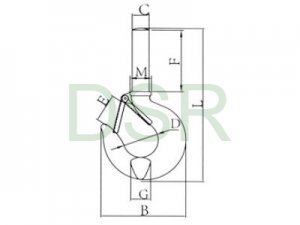

Dimensions（mm） |
|||||||||
|
WL/T |
B.L/T |
WLL/T |
B.L/T |
B±1 |
E±1 |
C±0.3 |
M±0.5 |
G±1.5 |
F±1 |
D±0.5 |
L±1.2 |
||
|
DSR050 |
0.23 |
1 |
4 |
0.75 |
3 |
73 |
25 |
15 |
18 |
16 |
51 |
32 |
127 |
|
DSR050 |
0.34 |
1.5 |
6 |
1 |
4 |
80.3 |
25.5 |
16.7 |
20 |
18 |
58 |
35 |
147 |
|
DSR050 |
0.45 |
2 |
8 |
1.5 |
6 |
92 |
30.4 |
18.4 |
23 |
22.5 |
67 |
38 |
165 |
|
DSR050 |
0.84 |
3 |
12 |
2 |
8 |
105 |
32 |
22.4 |
26 |
24 |
69 |
41.4 |
177.5 |
|
DSR050 |
1.75 |
5 |
20 |
3 |
12 |
126 |
38.5 |
29.5 |
32 |
29 |
82 |
51 |
216.5 |
|
DSR050 |
3.29 |
7 |
28 |
5 |
20 |
167 |
47 |
35.8 |
40 |
36 |
95.5 |
64 |
262.5 |
|
DSR050 |
6.1 |
11 |
44 |
7.5 |
30 |
192 |
61 |
46 |
51 |
47.7 |
111.2 |
76 |
323 |
|
DSR050 |
8.2 |
15 |
60 |
10 |
40 |
214.6 |
66 |
50.8 |
55.6 |
55.5 |
114 |
82.5 |
342 |
|
DSR050 |
16 |
22 |
88 |
15 |
60 |
262.5 |
89.5 |
65 |
68.8 |
68.5 |
141 |
108 |
426 |
Ultimate load is 4times the working load limit 破断拉力是工作拉力的4倍
