ITEM NO. in

WLL/T

Weight/ KG

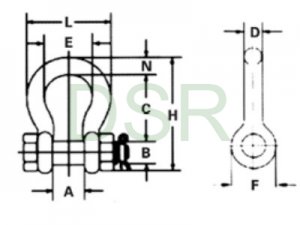

Dimensions（mm）

Tolerance +/-

A

B

C

D

E

F

H

L

N

G

A

3/16

0.3

0.03

9.65

6.35

22.4

4.85

15.2

14.2

37.3

24.9

4.85

1.50

1.50

1/4

0.5

0.05

11.9

7.85

28.7

6.35

19.8

15.5

46.7

32.5

6.35

1.50

1.50

5/16

0.75

0.10

13.5

9.65

31.0

7.85

21.3

19.1

53.0

37.3

7.85

3.30

1.50

3/8

1

0.15

16.8

11.2

36.6

9.65

26.2

23.1

63.0

45.2

9.65

3.30

1.50

7/16

1.5

0.22

19.1

12.7

42.9

11.2

29.5

26.9

74.0

51.5

11.2

3.30

1.50

1/2

2

0.36

20.6

16.0

47.8

12.7

33.3

30.2

83.5

58.5

12.7

3.30

1.50

5/8

3.25

0.62

26.9

19.1

60.5

16.0

42.9

38.1

106

74.5

17.5

6.35

1.50

3/4

4.75

1.23

31.8

22.4

71.5

19.1

51.0

46.0

126

89.0

20.6

6.35

1.50

7/8

6.5

1.79

36.6

25.4

84.0

22.4

58.0

53.0

148

102

24.6

6.35

1.50

1

8.5

2.28

42.9

28.7

95.5

25.4

68.5

60.5

167

119

26.9

6.35

1.50

1/8

9.5

3.75

46.0

31.8

108

28.7

74.0

68.5

190

131

31.8

6.35

1.50

1-1/4

12

5.31

51.5

35.1

119

31.8

82.5

76.0

210

146

35.1

6.35

1.50

1-3/8

13.5

7.18

57.0

38.1

133

35.1

92.0

84.0

233

162

38.1

6.35

3.30

1-1/2

17

9.43

60.5

41.4

146

38.1

98.5

92.0

254

175

41.1

6.35

3.30

1-3/4

25

15.4

73.0

51.0

178

44.5

127

106

313

225

57.0

6.35

3.30

2

35

23.7

82.5

57.0

197

51.0

146

122

348

253

61.0

6.35

3.30

2-1/2

55

44.6

105

70.0

267

66.5

184

145

453

327

79.5

6.35

6.35

3

85

70

127

82.5

330

76.0

200

165

546

365

92.0

6.35

6.35

3-1/2

120

120

133

95.5

372

92.0

229

203

626

419

105

6.35

6.35

4

150

153

140

108

368

104

254

229

653

468

116

6.35

6.35
