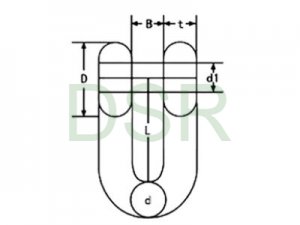

DSR078 JIS Shackle Commercial Type 日式卸扣
|
ITEM NO. |
B mm |
D mm |
L mm |
dl mm |
SWL Ton |
① kg |
② kg |
③ kg |
④ kg |
⑤ kg |
⑥ kg |
⑦ kg |
⑧ kg |
|
|
mm |
in |
|||||||||||||
|
4.8 |
3/16 |
10 |
10 |
18.5 |
5 |
0.09 |
0.013 |
0.014 |
0.024 |
0.026 |
-- |
-- |
-- |
-- |
|
6 |
1/4 |
12 |
11 |
25 |
6.5 |
0.15 |
0.026 |
0.028 |
0.062 |
0.028 |
-- |
-- |
-- |
-- |
|
8 |
5/16 |
14 |
15 |
31 |
8.5 |
0.25 |
0.046 |
0.049 |
0.062 |
0.065 |
-- |
-- |
-- |
-- |
|
9 |
3/8 |
18 |
17 |
36 |
10 |
0.4 |
0.07 |
0.049 |
0.077 |
0.08 |
0.073 |
0.065 |
0.075 |
0.1 |
|
12 |
1/2 |
24 |
23 |
46 |
13 |
0.6 |
0.17 |
0.18 |
0.19 |
0.2 |
0.15 |
0.17 |
0.186 |
0.215 |
|
16 |
5/8 |
30 |
32 |
59 |
17 |
0.8 |
0.4 |
0.42 |
0.475 |
0.495 |
0.37 |
0.41 |
0.455 |
0.5 |
|
19 |
3/4 |
36 |
37 |
74 |
20 |
1 |
0.7 |
0.72 |
0.78 |
0.8 |
0.62 |
0.67 |
0.78 |
0.83 |
|
22 |
7/8 |
43 |
43 |
86 |
23 |
1.5 |
1.1 |
1.18 |
1.18 |
1.26 |
1 |
1.1 |
1.4 |
1.3 |
|
25 |
1 |
47 |
50 |
95 |
27 |
2 |
1.7 |
1.8 |
1.8 |
1.9 |
1.53 |
1.6 |
1.75 |
2.05 |
|
28 |
1-1/8 |
55 |
56 |
110 |
30 |
2.5 |
2.4 |
2.5 |
2.55 |
2.65 |
2.2 |
2.35 |
2.4 |
3 |
|
32 |
1-1/4 |
64 |
64 |
130 |
34 |
3.2 |
3.6 |
3.7 |
3.9 |
4 |
3.2 |
3.35 |
3.6 |
4.23 |
|
38 |
1-1/2 |
76 |
76 |
145 |
40 |
4.2 |
6 |
6.1 |
6.9 |
7 |
5.25 |
5.7 |
6 |
7.1 |
|
44 |
1-3/4 |
80 |
90 |
160 |
47 |
6.5 |
10 |
-- |
-- |
-- |
-- |
-- |
-- |
10.7 |
|
50 |
2 |
90 |
100 |
185 |
53 |
8 |
12 |
-- |
-- |
-- |
-- |
-- |
-- |
17 |
|
65 |
2-1/2 |
110 |
130 |
240 |
68 |
15 |
28 |
-- |
-- |
-- |
-- |
-- |
-- |
33 |
|
75 |
3 |
120 |
150 |
300 |
78 |
20 |
44 |
-- |
-- |
-- |
-- |
-- |
-- |
50 |
