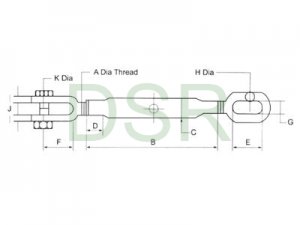

DSR084 Turnbuckle Rigging Screw 封闭花兰
|
ITEM NO. mm |
SWL |
A mm |
B mm |
C mm |
D |
E |
Weight/PC |
|||||
|
JAW |
OVALEYE |
|||||||||||
|
KG |
Dia Screw |
Length of Body |
Dia of Body |
Dia mm |
Inside mm |
Dia(mm) Inside (mm) |
KG |
|||||
|
D1 |
D2 |
LengthD3 |
WidthD4 |
E1 |
Length E2 |
Width E3 |
||||||
|
6 |
100 |
6 |
102 |
12 |
3 |
5 |
15 |
7 |
6 |
15 |
8 |
0.11 |
|
8 |
150 |
8 |
110 |
15 |
4 |
6 |
16 |
9 |
7 |
19 |
10 |
0.23 |
|
10 |
375 |
10 |
152 |
21 |
5 |
8 |
21 |
11 |
8 |
25 |
11 |
0.28 |
|
12 |
500 |
12 |
175 |
27 |
6 |
10 |
25 |
13 |
11 |
30 |
14 |
0.8 |
|
16 |
750 |
16 |
229 |
27 |
10 |
12 |
40 |
18 |
14 |
41 |
16 |
1.4 |
|
20 |
1125 |
20 |
229 |
33 |
12 |
16 |
45 |
20 |
16 |
41 |
22 |
2 |
|
22 |
1600 |
22 |
305 |
33 |
15 |
18 |
48 |
24 |
16 |
51 |
22 |
3.5 |
|
24 |
2000 |
24 |
325 |
42 |
16 |
22 |
65 |
28 |
19 |
57 |
25 |
4 |
|
28 |
2750 |
28 |
356 |
48 |
18 |
22 |
59 |
30 |
19 |
57 |
28 |
4.5 |
|
33 |
3750 |
33 |
381 |
48 |
20 |
27 |
62 |
34 |
22 |
65 |
35 |
6.5 |
|
35 |
4250 |
35 |
381 |
60 |
22 |
28 |
68 |
38 |
22 |
65 |
36 |
8 |
|
39 |
5000 |
39 |
406 |
60 |
24 |
33 |
74 |
42 |
25 |
74 |
38 |
11 |
