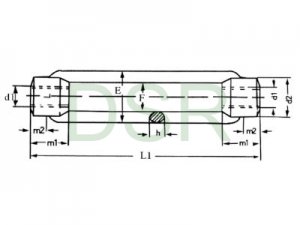

DSR082 Turnbuckle DIN1480 德制DIN1480花兰
|
ITEM NO. mm |
d2 mm |
E mm |
F mm |
h min mm |
L1 mm |
m1 mm |
M2 max mm |
|
M6 |
12 |
19 |
9 |
6 |
110 |
12 |
6 |
|
M8 |
15 |
23 |
11 |
8 |
110 |
15 |
8 |
|
M10 |
18 |
30 |
14 |
9 |
125 |
18 |
9 |
|
M12 |
21 |
34 |
16 |
11 |
125 |
21 |
11 |
|
M16 |
27 |
42 |
20 |
14 |
170 |
27 |
14 |
|
M20 |
34 |
52 |
24 |
17 |
200 |
34 |
17 |
|
M24 |
39 |
60 |
28 |
20 |
255 |
39 |
20 |
|
M27 |
45 |
74 |
34 |
23 |
255 |
45 |
23 |
|
M30 |
55 |
86 |
40 |
28 |
295 |
55 |
28 |
|
M36 |
63 |
104 |
50 |
32 |
330 |
63 |
32 |
|
M42 |
80 |
135 |
65 |
40 |
355 |
78 |
39 |
|
M48 |
80 |
135 |
65 |
40 |
355 |
78 |
39 |
