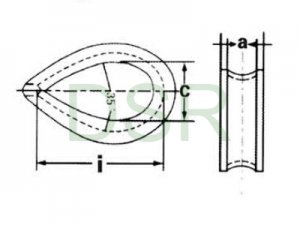

DSR092 DIN6899 Type“A” Wire Rope Thimble DIN6899A 套环
|
ITEM NO.mm |
Rope Dia. |
Switch Opening |
Inside Length |
Inside Width |
Weight/100pcs KG |
|
a |
i |
c |
|||
|
2.5 |
2.5 |
3 |
21.5 |
10 |
0.14 |
|
3 |
3 |
3.5 |
23.5 |
11 |
0.35 |
|
3.5 |
3.5 |
4 |
26.5 |
12 |
0.38 |
|
4 |
4 |
5 |
28.5 |
13 |
0.42 |
|
5 |
5 |
6 |
30 |
14 |
0.80 |
|
6 |
6 |
7 |
33 |
15 |
0.81 |
|
7 |
7 |
8 |
35 |
16 |
1.1 |
|
8 |
8 |
9 |
39 |
18 |
1.7 |
|
9 |
9 |
10 |
43 |
20 |
2.1 |
|
10 |
10 |
11 |
47.5 |
22 |
3.5 |
|
11 |
11 |
12 |
51.5 |
24 |
3.7 |
|
12 |
12 |
13 |
56.5 |
26 |
5.25 |
|
13 |
13 |
14 |
61 |
28 |
7.25 |
|
15 |
15 |
16 |
69.5 |
32 |
8.33 |
|
16 |
16 |
18 |
78 |
35 |
17.9 |
|
18 |
18 |
20 |
86.5 |
40 |
27 |
|
20 |
20 |
22 |
95 |
44 |
35.5 |
|
24/26 |
24/26 |
26 |
105 |
48 |
52 |
