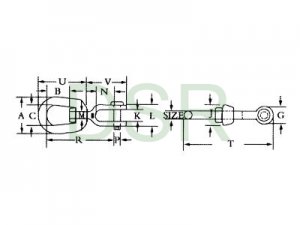

DSR100 G403 Jaw End Swivels G403羊角旋转环
|
ITEM NO. in |
WLL/LBS |
Dimensions(in.) |
Weight/LBS |
|||||||||||||
|
A |
B |
C |
G |
J |
K |
L |
M |
N |
P |
R |
T |
U |
V |
|||
|
1/4 |
850 |
1.25 |
0.69 |
0.75 |
0.69 |
0.69 |
0.47 |
1.03 |
0.31 |
0.88 |
0.25 |
2.63 |
3.38 |
1.69 |
1.69 |
0.25 |
|
5/16 |
1250 |
1.63 |
0.81 |
1.00 |
0.81 |
0.81 |
0.50 |
1.13 |
0.38 |
0.88 |
0.31 |
2.94 |
3.88 |
2.06 |
1.81 |
0.35 |
|
3/8 |
2250 |
2.00 |
0.94 |
1.25 |
1.00 |
1.00 |
0.63 |
1.41 |
0.50 |
1.06 |
0.38 |
3.63 |
4.75 |
2.50 |
2.25 |
0.70 |
|
1/2 |
3600 |
2.50 |
1.31 |
1.50 |
1.31 |
1.31 |
0.75 |
1.75 |
0.63 |
1.31 |
0.50 |
4.50 |
6.06 |
3.19 |
2.88 |
1.43 |
|
5/8 |
5200 |
3.00 |
1.56 |
1.75 |
1.63 |
1.50 |
0.94 |
2.06 |
0.75 |
1.50 |
0.63 |
5.31 |
7.31 |
3.88 |
3.44 |
2.48 |
|
3/4 |
7200 |
3.50 |
1.75 |
2.00 |
1.88 |
1.88 |
1.13 |
2.53 |
0.88 |
1.75 |
0.75 |
6.06 |
8.31 |
4.31 |
4.00 |
3.88 |
|
7/8 |
10000 |
4.00 |
2.06 |
2.25 |
2.13 |
2.13 |
1.19 |
2.75 |
1.00 |
2.06 |
0.88 |
7.00 |
9.53 |
5.00 |
4.53 |
5.75 |
|
1 |
12500 |
4.50 |
2.31 |
2.50 |
2.63 |
2.38 |
1.75 |
3.72 |
1.13 |
2.81 |
1.13 |
8.56 |
11.69 |
5.75 |
5.94 |
10.25 |
|
1-1/4 |
18000 |
5.69 |
2.69 |
3.13 |
3.31 |
3.00 |
2.06 |
4.31 |
1.38 |
2.81 |
1.38 |
9.44 |
13.13 |
6.75 |
6.38 |
15.75 |
|
1-1/2 |
45200 |
7.00 |
4.19 |
4.00 |
5.63 |
4.00 |
2.88 |
6.00 |
2.25 |
4.44 |
2.25 |
14.74 |
20.84 |
10.00 |
10.84 |
54.75 |
