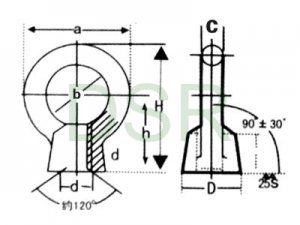

DSR097 JIS B1169 EYE BOLT 日式B1169吊环螺母
|
Designation of Eye Bit (d) |
a mm |
b mm |
c mm |
D mm |
T mm |
h mm |
H (Ref.) |
r (Approx) |
d1 mm |
WLL |
Approx Weight/KG |
||
|
M |
W |
M kn(kg) |
W kn(kg) |
||||||||||
|
6 |
1/4 |
25 |
14 |
6.3 |
13 |
10 |
20 |
32.5 |
6 |
7.5 |
0.588(60) |
|
0.016 |
|
8 |
5/16 |
32.6 |
20 |
6.3 |
16 |
12 |
23 |
39.3 |
8 |
8.5 |
0.785(80) |
|
0.026 |
|
10 |
3/8 |
41 |
25 |
8 |
20 |
15 |
28 |
48.5 |
10 |
10.6 |
1.47(150) |
1.37(140) |
0.064 |
|
12 |
1/2 |
50 |
30 |
10 |
25 |
19 |
36 |
61 |
12 |
12.5 |
2.16(220) |
2.16(220) |
0.125 |
|
16 |
5/8 |
60 |
35 |
12.5 |
30 |
23 |
42 |
72 |
14 |
17 |
4.41(450) |
3.92(400) |
0.223 |
|
20 |
3/4 |
72 |
40 |
16 |
35 |
28 |
50 |
86 |
16 |
21.2 |
6.18(630) |
5.88(600) |
0.390 |
|
22 |
7/8 |
81 |
44 |
19 |
41 |
33 |
58 |
99 |
20 |
24 |
7.74(790) |
7.84(800) |
0.570 |
|
24 |
1 |
90 |
50 |
20 |
45 |
38 |
66 |
111 |
25 |
25 |
9.32(950) |
9.32(950) |
0.850 |
|
30 |
1-1/4 |
110 |
60 |
25 |
60 |
46 |
80 |
135 |
30 |
31.5 |
14.7(1500) |
14.7(1500) |
1.75 |
|
36 |
1-1/2 |
133 |
70 |
31.5 |
70 |
55 |
95 |
161.5 |
35 |
37.5 |
22.6(2300) |
22.6(2300) |
3.00 |
|
42 |
1-3/4 |
151 |
80 |
35.5 |
80 |
64 |
109 |
184.5 |
40 |
45 |
33.3(3400) |
33.3(3400) |
4.65 |
|
48 |
2 |
170 |
90 |
40 |
90 |
73 |
123 |
208 |
45 |
50 |
44.1(4500) |
44.1(4500) |
6.60 |
|
64 |
2-1/2 |
210 |
110 |
50 |
110 |
90 |
151 |
256 |
50 |
67 |
88.3(9000) |
88.3(9000) |
13.80 |
