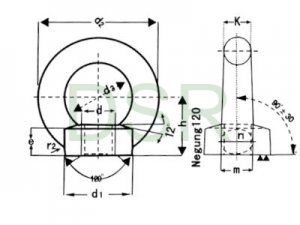

ITEM NO.

WLL/T

d1 mm

d2 mm

d3 mm

e

mm

h

mm

k

 mm

Weight/100pcs

KG

M6

0.08

20

36

20

8.5

18

8

4.5

M8

0.14

20

36

20

8.5

18

8

5.0

M10

0.23

25

45

25

10

22.5

10

9.0

M12

0.34

30

54

30

11

26

12

16.0

M14

0.49

35

63

35

13

30.5

14

24.0

M16

0.7

35

63

35

13

30.5

14

24.0

M18

0.93

40

72

40

16

35

16

36.0

M20

1.2

40

72

40

16

35

16

36.0

M22

1.5

45

81

45

18

40

18

58.0

M24

1.8

50

90

50

20

45

20

72.0

M27

2.5

50

90

50

20

45

20

70.0

M30

3.6

65

108

60

25

55

24

132.0

M33

4.3

65

108

60

25

55

24

130.0

M36

5.1

75

126

70

30

65

28

208.0

M39

6.1

75

126

70

30

65

28

202.0

M42

7.0

85

144

80

35

75

32

311.0

M45

8

85

144

80

35

75

32

304.0

M48

8.6

100

166

90

40

85

38

502.0

M52

9.9

100

166

90

40

85

38

495.0

M56

11.5

110

184

100

45

95

42

669.0

M64

16.0

120

206

110

50

105

48

930.0
