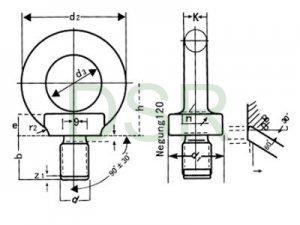

ITEM NO.

WLL/T

d1 mm

d2 mm

d3 mm

b  mm

e mm

h  mm

k mm

Weight/100pcs

KG

M6

0.08

20

36

20

13

6

18

8

5

M8

0.14

20

36

20

13

6

18

8

6

M10

0.23

25

45

25

17

8

22.5

10

11

M12

0.34

30

54

30

20.5

10

26

12

18

M14

0.49

35

63

35

27

12

30.5

14

28

M16

0.7

35

63

35

27

12

30.5

14

28

M18

0.93

40

72

40

30

14

35

16

45

M20

1.2

40

72

40

30

14

35

16

45

M22

1.5

45

81

45

35

16

40

18

67

M24

1.8

50

90

50

36

18

45

20

87

M27

2.5

50

90

50

36

18

45

20

88

M30

3.6

65

108

60

45

22

55

24

166

M33

4.3

65

108

60

45

22

55

24

172

M36

5.1

75

126

70

54

26

65

28

265

M39

6.1

75

126

70

54

26

65

28

280

M42

7.0

85

144

80

63

30

75

32

403

M45

8

85

144

80

63

30

75

32

425

M48

8.6

100

166

90

68

35

85

38

638

M52

9.9

100

166

90

68

35

85

38

660

M56

11.5

110

184

100

78

38

95

42

880

M64

16.0

120

206

110

90

42

105

48

1240
