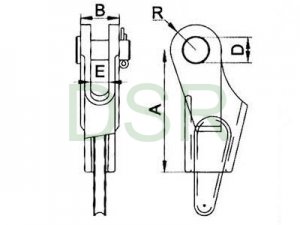

ITEM NO. mm

WLL/ KN

A mm

B mm

D mm

E mm

R mm

Opening mm

 Weight/KG

6

10

90

29

16

13

16

4x24

0.56

8

10

100

31

18

15

25

4x26

0.77

10

15

120

38

20

18

25

5x30

1.01

12

20

155

44

25

20

30

5x35

1.70

14

25

185

51

30

23

35

6.3x45

2.34

16

30

195

60

34

26

42

6.3x50

3.27

18

35

195

64

36

28

44

6.3x50

4.00

20

50

220

72

38

30

50

6.3x50

5.45

22

55

240

76

40

32

52

6.3x55

6.37

24

65

260

83

50

35

60

6.3x65

8.32

26

75

280

92

55

38

65

8x75

10.16

28

95

305

94

55

40

70

8x75

13.94

32

120

360

110

65

44

77

8x90

17.94

36

155

390

122

70

48

85

8x95

23.03

40

200

470

145

75

55

90

8x100

32.35

42

220

480

160

82

60

96

10x100

76.00

44

240

520

164

85

64

105

10x100

85.50

48

280

530

174

90

70

100

10x100

95.00

52

320

570

184

90

74

105

10x100

128.00
