ITEM NO.in

WEIGHT/KG

WLL/T

B.L/T

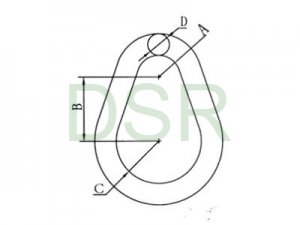

Dimensions（mm）

A

B

C

D

3/8

0.1

1.6

8

10

28.5

19

10

1/2

0.25

3.2

16

12.5

38

25.5

12.5

5/8

0.50

4.1

20.5

16

47.5

32

16.0

3/4

0.80

5.6

28

19

57

38

19

7/8

1.4

6.4

32

22

67

44.5

22.2

1

1.9

11

55

25

76

51.0

25.4

1-1/8

2.92

13.9

69.5

28

86

57.0

28.5

1-1/4

3.75

16.3

81.5

32

95

63.5

32

1-3/8

5.12

19.5

97.5

35

105

70.0

35

1-1/2

6.5

24.6

123

38

114

76.0

38

1-5/8

8.4

28.4

142

41.5

124

82.5

41.3

1-3/4

10.21

38.5

192.5

44.5

133

89.0

44.5

1-7/8

13.15

43.5

217.5

48

143

95.5

47.6

2

15.42

46.5

232.5

51

152.5

102

51.0

2-1/4

21.78

64.9

324.5

57.5

171.5

114.5

57.0

2-1/2

29.94

66.8

334

63.5

190.5

127

63.5

2-3/4

39.92

98.4

492

70

209.5

140

70.0

3

51.71

103.4

517

76.5

229

152.5

76.0

3-1/4

66.23

118.9

594.5

82.5

248

165

82.5

3-1/2

82.1

126.6

633

89

257.5

178

89.0

4

122.93

169.2

846

102

305

203.5

101.5
