DSR032 A-347G80 MASTER LINK ASSEMBLY G80子母环A-347
|
ITEM NO.in |
WEIGHT/KG |
CHAIN(4：1) |
STEEL(5：1) |

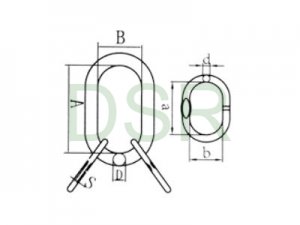

Dimensions（mm） |
|||||||||
|
A |
B |
D |
a |
b |
d |
s |
|||||||
|
WLL/T |
B.L/T |
WLL/T |
B.L/T |
||||||||||
|
1/2 |
0.82 |
2.4 |
9.6 |
2 |
10 |
100 |
60 |
14 |
85 |
40 |
12 |
6 |
|
|
5/8 |
1.61 |
3.2 |
12.8 |
2.5 |
12.5 |
160 |
90 |
18 |
100 |
60 |
14 |
7.6 |
|
|
3/4 |
1.95 |
5 |
20 |
4 |
20 |
160 |
90 |
20 |
100 |
60 |
14 |
7.6 |
|
|
7/8 |
3.16 |
8 |
32 |
6.4 |
32 |
180 |
100 |
22 |
150 |
70 |
18 |
8.4 |
|
|
1-1/8 |
6.75 |
12 |
48 |
9.6 |
48 |
270 |
140 |
28 |
160 |
90 |
22 |
13.5 |
|
|
1-1/4 |
9.31 |
17.4 |
69.6 |
13.9 |
69.5 |
270 |
140 |
32 |
180 |
100 |
25 |
16.5 |
|
|
1-1/2 |
18.4 |
21 |
84 |
- |
- |
300 |
160 |
40 |
270 |
140 |
31 |
- |
|
|
1-3/4 |
26.4 |
30 |
120 |
- |
- |
340 |
180 |
45 |
285 |
155 |
36 |
- |
|
|
2 |
42.91 |
40 |
160 |
- |
- |
350 |
190 |
51 |
340 |
180 |
45 |
- |
|
For chain sling: Ultimate load is 4 times the working load limit 与链条配合：破断拉力是工作拉力4倍
For wire rope sling:Ultimate load is 5times the working load limit 与钢丝绳配合：破断拉力是工作拉力5倍
