DSR024 G80 U.S. TYPE CONNECTING LINK G80美式链接双环扣
|
ITEM NO.in |
WEIGHT/LBS |
WLL/LBS |
B.L/LBS |

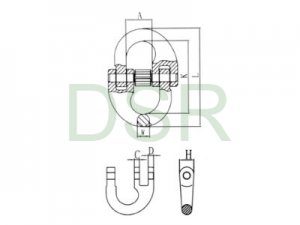

Dimensions（mm） |
||||||
|
A±1.5 |
L±2.5 |
K±2 |
W±1 |
H±1 |
C±0.2 |
D±0.3 |
||||
|
1/4 |
0.286 |
3500 |
14000 |
16.5 |
67 |
51 |
8 |
13 |
4 |
4 |
|
5/16 |
0.32 |
4500 |
18000 |
17 |
78.5 |
58.5 |
10 |
14.5 |
6 |
6.6 |
|
3/8 |
0.73 |
7100 |
28400 |
22 |
87.6 |
63.5 |
12 |
17 |
6.2 |
8.1 |
|
1/2 |
1.67 |
12000 |
48000 |
28.5 |
115.5 |
85.5 |
15 |
21.6 |
7.8 |
7.8 |
|
5/8 |
2.86 |
18100 |
72400 |
33 |
146 |
106 |
18.5 |
26 |
9.5 |
10 |
|
3/4 |
5 |
28300 |
113200 |
41 |
162 |
116 |
23 |
32 |
12 |
13 |
|
7/8 |
7.5 |
34200 |
136800 |
50.5 |
188.5 |
136.5 |
26 |
38 |
13 |
15.5 |
|
1 |
11.03 |
47700 |
190800 |
57 |
214.5 |
152.5 |
31 |
44 |
15 |
16.5 |
|
1-1/4 |
20.38 |
72300 |
289200 |
65 |
265 |
188.8 |
38 |
54 |
20 |
20 |
Ultimate load is 4times the working load limit 破断拉力是工作拉力的4倍
