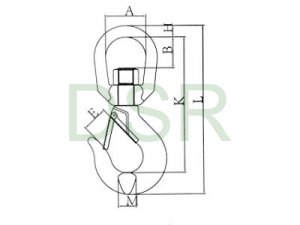

DSR037 322A/322C SWIVEL HOOK 322A/322C旋转钩
|
ITEM NO. |
WEIGHT/KG |
ALLOY STEEL |
CARBON STEEL |
Dimensions（mm） |
||||||||
|
WLL/T |
B.L/T |
WLL/T |
B.L/T |
A±1 |
E±2 |
B±2 |
H±0.6 |
K±3 |
L±3 |
M±1 |
||
|
DSR037 |
0.3 |
0.75 |
3 |
0.5 |
2 |
31.5 |
17 |
22.5 |
9 |
110 |
137 |
15 |
|
DSR037 |
0.34 |
1 |
4 |
0.75 |
3 |
32 |
17 |
22.5 |
9 |
108.3 |
137 |
16 |
|
DSR037 |
0.57 |
1.5 |
6 |
1 |
4 |
37.5 |
22.5 |
29.5 |
12 |
133.5 |
163.5 |
16 |
|
DSR037 |
1.02 |
2 |
8 |
1.5 |
6 |
42.5 |
26 |
33 |
15.8 |
150.5 |
192 |
17.5 |
|
DSR037 |
1.24 |
3 |
12 |
2 |
8 |
42.5 |
26 |
33 |
15.8 |
163 |
209 |
23 |
|
DSR037 |
2.25 |
5 |
20 |
3 |
12 |
48 |
32.5 |
39 |
18 |
191 |
246 |
31 |
|
DSR037 |
4.66 |
7 |
28 |
5 |
20 |
64 |
43 |
53 |
25 |
243.5 |
313 |
34 |
|
DSR037 |
7.4 |
11 |
44 |
7.5 |
30 |
70 |
49.5 |
53 |
28.5 |
277 |
364 |
41.5 |
|
DSR037 |
10.6 |
15 |
60 |
10 |
40 |
79 |
54.5 |
62 |
32 |
332 |
431 |
55.7 |
|
DSR037 |
21.4 |
22 |
88 |
15 |
60 |
105 |
81 |
108 |
40 |
427 |
543 |
70 |
|
DSR037 |
32 |
30 |
120 |
20 |
80 |
105 |
100 |
96 |
40 |
465.3 |
596 |
76.2 |
Ultimate load is 4times the working load limit 破断拉力是工作拉力的4倍
