DSR036 320A/320C EYE HOIST HOOK WITH LATCH 320A/320C环眼钩
|
ITEM NO. |
WEIGHT/KG |
ALLOY STEEL |
CARBON STEEL |

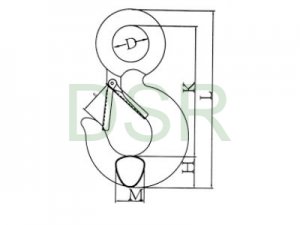

Dimensions（mm） |
|||||||
|
WLL/T |
B.L/T |
WLL/T |
B.L/T |
D±0.6 |
E±2 |
H±1.5 |
K±2.5 |
M±5 |
L±3 |
||
|
DSR036 |
0.21 |
0.75 |
3 |
0.5 |
2 |
16.5 |
19 |
17 |
72 |
16 |
97 |
|
DSR036 |
0.28 |
1 |
4 |
0.75 |
3 |
19 |
22 |
19 |
82 |
16 |
110 |
|
DSR036 |
0.4 |
1.5 |
6 |
1 |
4 |
23 |
23 |
21 |
93.5 |
17.5 |
125 |
|
DSR036 |
0.65 |
2 |
8 |
1.5 |
6 |
28 |
24 |
26 |
103 |
21 |
140.5 |
|
DSR036 |
0.81 |
3 |
12 |
2 |
8 |
31 |
27.5 |
28 |
119 |
23 |
162 |
|
DSR036 |
1.75 |
5 |
20 |
3 |
12 |
39 |
33 |
37 |
146 |
30 |
201 |
|
DSR036 |
3.77 |
7 |
28 |
5 |
20 |
51 |
40 |
46.5 |
186.5 |
38 |
256 |
|
DSR036 |
6.8 |
11 |
44 |
7.5 |
30 |
62 |
51 |
57 |
231.5 |
46 |
317 |
|
DSR036 |
9.96 |
15 |
60 |
10 |
40 |
73 |
57 |
70 |
260 |
55 |
360 |
|
DSR036 |
15.33 |
22 |
88 |
15 |
60 |
89 |
75 |
76 |
318 |
68.5 |
434 |
|
DSR036 |
27.2 |
30 |
120 |
20 |
80 |
90 |
82 |
91 |
360 |
70 |
495.5 |
Ultimate load is 4times the working load limit 破断拉力是工作拉力的4倍
